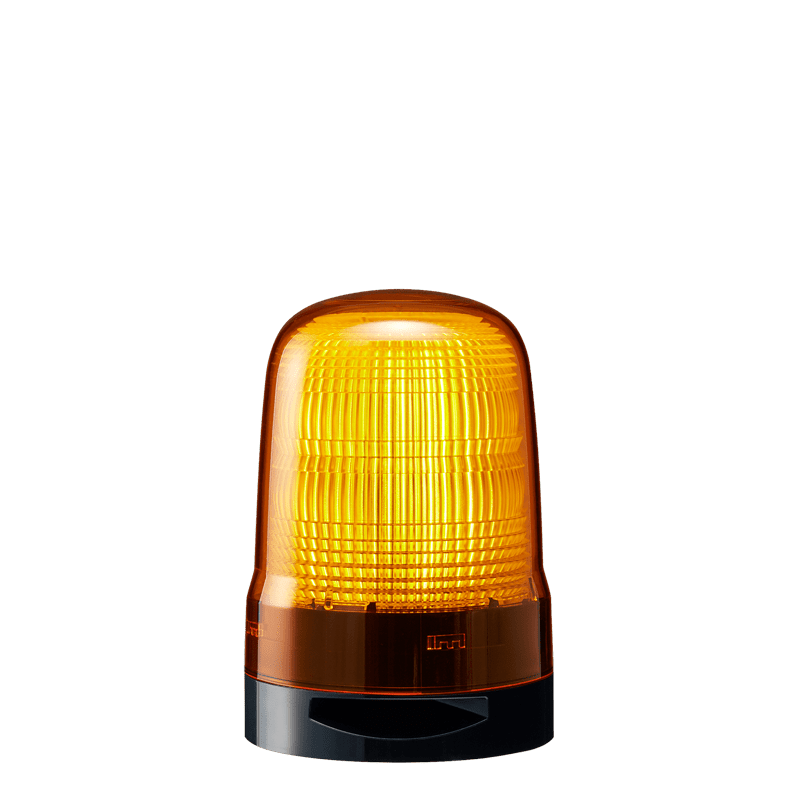

SL10-M1KTB-Y
| Series | SL |
|---|---|
| function | Flashing Beacons SL |
| size | 100 mm |
| Rated voltage | 12-24V DC |
| Mounting method | 2-point Hole |
| Wiring method | Terminal Block |
| Globe color | Amber |
| buzzer | Yes |
| Mounting pitch | 55 |
| Material (Glove / Body) | PC |
| Degree of protection | IP66, NEMA TYPE 4X / 13 |
| Applicable standards | UL/cUL, CE , KC, EAC |
| Remarks | If switching from PEW series (with buzzer): the mounting pitch for 2-point hole type is changed to 55mm, and 3-point hole type mounting is not supported. Additionally, the wiring method is changed to terminal block wiring. 24V AC is not supported. |
Compatible Mounting Options
