MP3 File Playback Circuit Board
FV-127JP
Audio messages can be registered in a maximum of 127 channels on the FV-127JP unit. This is ideal for installation inside various equipment or facilities where audio message assistance is required, and field programming is necessary.
- I/O Control
- MP3 Annunciator
- Voice
- 105dB
Product Features
High Quality Sound and Long Playback Time
- The MP3 compressed audio file format enables long playback time and high quality sound.
- Approx. 8-minute long audio message data can be stored in an internal memory.
- 240-minute long playback is possible when an SD card is used as an external memory. (MP3 data at 64kbits/s with a 2GB SD card)
Extraction and Overwriting of Audio Messages
- Audio messages can be reprogrammed and overwritten easily with the playlist editor (included) and an optional SD card.
- Also, the audio message data stored in the device can be extracted to an SD card.
3-Level Volume Reduction Function
- Volume can be reduced at 3 levels by external signal input. (-10dB, -20dB, -30dB at 1m)
Various Playback Modes
- 5 playback modes are available.
Highly Reliable Operation
- The duration of input loading can be selected. (10 or 50msec)
- Extending the duration of input loading enhances noise resistance.
- Countermeasures against noise can be taken according to the usage environment by noise countermeasure pin setting.
Other Features
- The terminal block provides safe and secure wire connections.
- Speaker output (2W or 4W selectable), AUX output, and BUSY output are equipped.
- Rated voltage: 24V DC (Operating voltage range: 19 to 29V DC)

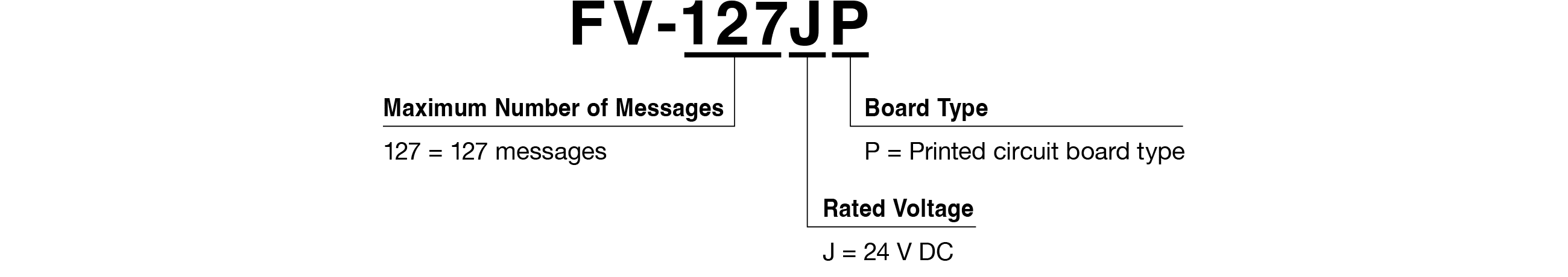

Model Specifications
| RATED VOLTAGE | - 24V DC |
| AUDIBLE STYLE | - MP3 |
| SOUND STORAGE | - Sound Pattern: 127 messages in 480 seconds |
| CHANNEL SELECTION | - Dip switch setting can also select Binary Input Mode |
| CONFORMITY STANDARDS | - RoHS - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
| OPTIONS | - SPL-5E |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Manual (En) File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]Product Specifications
