Φ25mm LED Signal Light
ME-A
Features a super slim-profile design with a 25mm (.98") diameter and a 200mm body length for easy installation in tight spaces.
- I/O Control
- Signal Tower
- Φ25
- Continuous on
- Indoor
- IP42
- Red
- Amber
- Green
- Blue
- White
Product Features
- Super slim design with superior visibility
- Rearrange LED modules without having to rewire
- Corrosion-resistant aluminium body and impact, heat-resistant polycarbonate lenses
- LED units appear clear when off to prevent false indication from ambient light
- IP65 water and dust resistance
- NPN/PNP open-collector

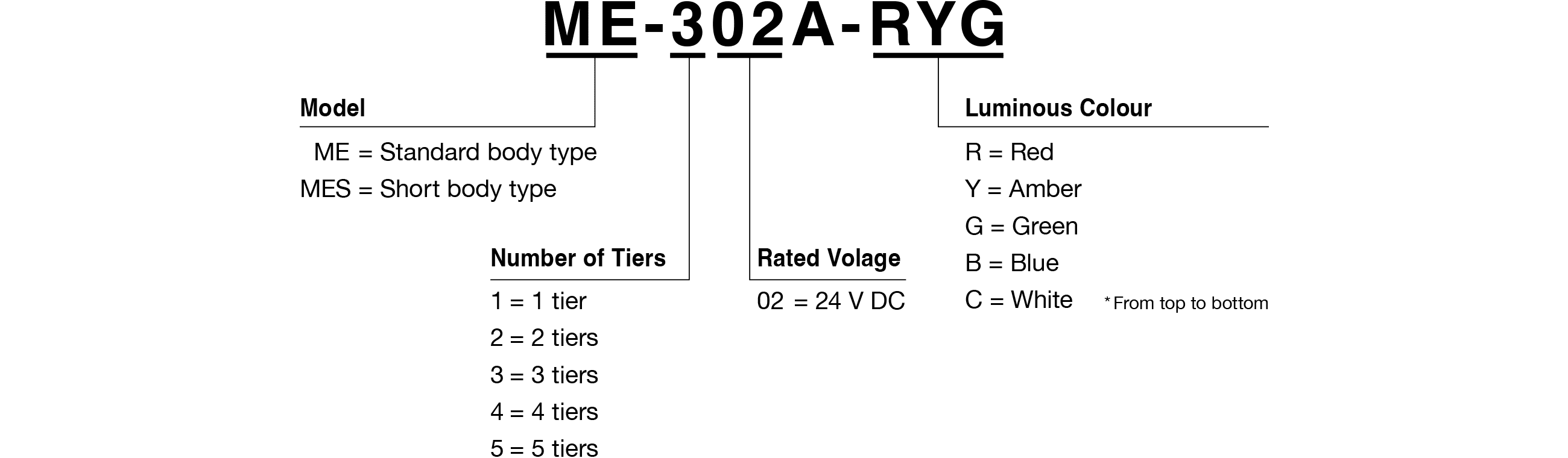

Specifications
Dimensions | Φ25mm |
Rated Voltage | 24V DC |
Functions | Continuous Only |
Body Colour | Silver |
Body Style | Pre-assembled, pre-wired Interchangeable and stackable module after purchase |
Stackable Tiers | Up to 5 LED units |
Module Colours | Red Amber Green Blue Clear |
Conformity Standards | CE Marking UL Recognized Component (US) c-UL Recognized Component (Canada) RoHS |
Protection Rating | IP42 IP65 (PNP type) |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
Product Specifications
