162mm Revolving Warning Light
RT-VF
The RT series is a large horn with MP3 and rotating light combination for increased plant floor coverage.
- I/O Control
- Φ162
- Revolving Warning Light
- Rotating
- Hybrid Products
- Voice
- 105dB
- Indoor
- Outdoor
- IP23
- Red
- Amber
- Green
- Blue
Product Features
・MP3 with an SD card adds simplification to programming message data for high-quality sound. A total of 63 seconds is possible for playback of four messages in the “Bit Input Mode” and 15 messages in the “Binary Input Mode”. Message data can be easily edited using PATLITE’s playlist editor2 software along with an SD card.
・Various Operational Modes The "Test Mode" can check the volume level, and the "Sound Reduction Mode" can reduce the volume by -20dB just by applying a signal to the reduction input during message playback. In addition, the switching between the "Bit Input Mode”, “Binary Input Mode" and controlling the input for Interrupt Playback Mode” and “Hold Playback Mode" is possible.
・ Moreover, the 24V DC model also corresponds to UL Standards.
| DIMENSIONS | - 162mm diameter |
|---|---|

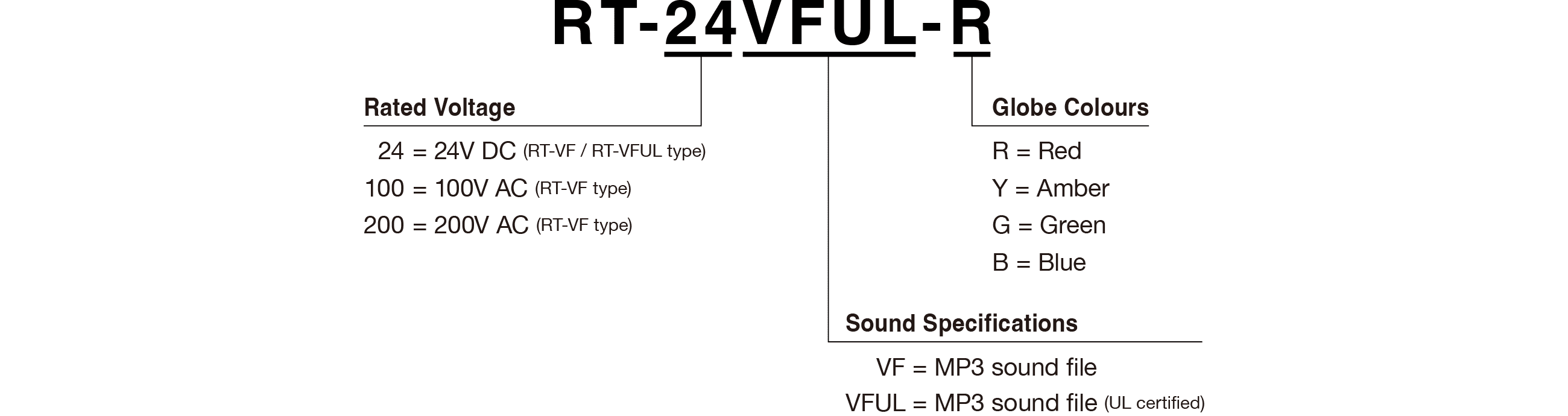

| RATED VOLTAGE | - 24V DC - 100V AC - 200V AC |
| AUDIBLE STYLE | - RT-VF : Maximum Playback time 63 sec : Bit Input 4 / Binary Input 15 |
| SOUND RECORDING OPTIONS | - Messages composed from a pre-recorded library (Message availability may be limited) - Customized Messages can be created at the factory (Additional costs may apply) |
| SOUND SELECTION | - MPEG1 - Audio Layer Ill (MP3) Standard Bit Rate 64kb1ts/s |
| VOLUME | - Maximum 105dB at 1 meter with adjustable volume control |
| STACKABLE TIERS | - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN for DC24V) |

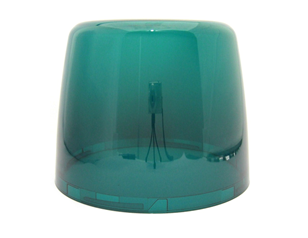

| GLOBE COLOUR | - Red - Amber - Green - Blue |
| GLOBE MATERIAL | - AS Resin |
| PROTECTION RATING | - IP23 |
| CONFORMITY STANDARDS | UL 464(RT-24VFUL) |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Manual (En) File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]Product Specifications
