60mm LED Signal Tower Lights
LR6 Series

Discover the LR6 Series 60mm LED Signal Tower Lights featuring ultra-bright LEDs, a modular design, and options for challenging applications. Smooth surface.

  • I/O Control
  • Signal Tower
  • Φ60
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 88dB
  • Indoor
  • IP54
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White
  • 60mm LED Signal Tower Lights LR6 Series
  • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
  • Re-engineered, fully enclosed sound module, providing substantial water and dust protection while delivering loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • A modular "Twist and Lock" design for easy customisation and field configuration of LED units and sound modules.
  • A sleek, smooth form factor with a rugged construction designed for harsh environments, rated at IP65 protection.
  • Multi-colour LED module available (7 colours in one: red, amber, green, blue, light blue, purple, and white). Part Number: LR6-E-MZ.
  • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
  • Available with M12 connector, ½”NPT or 30mm through-hole mounting option (LR6-WC type).
  • Available in DC24V and AC100-240V (Off-white only).
  • Available in Off-white and Silver bodies.
  • Available with Clear lens (special order).



Specifications

Operating Ambient Temperature -20℃ - +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ - +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes / min.
Sound Level LR6 Typ. 88dB
Sound Reduction*2 Approx. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at 1m distance
Buzzer Sound 4 patterns*2
No.1 Rapid intermittent beep / 3378Hz
No.2 Continuous beep sound / 3378Hz
No.3 Rapid Hi-Lo / 2016Hz&3012Hz
No.4 Sweep sound / 1000Hz-4032Hz
Transistor Output NPN / PNP (AC100 - 240V is NPN only)
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Low-voltage Directive (IEC/EN 60947-5-1, EN62471)*4

*1: LJ Type is IP54   *2: Dependent on DIP Switch Settings   *3: Except KT, Assembly Model WT and M2 LJ type   *4: M2 Type Only (Except LJ Type)



LED Unit Specifications

Colour Red Amber Green Blue White
Signal Wire Current (Per Unit) / Rated Power Consumption (Per Unit) Typ. 40mA / 1W
Max. 45mA / 1.3W



Buzzer Unit Specifications

Signal Wire Current (Buzzer Unit) / Rated Power Consumption (Buzzer Unit) Typ. 40mA / 1W
Max. 250mA / 1.3W

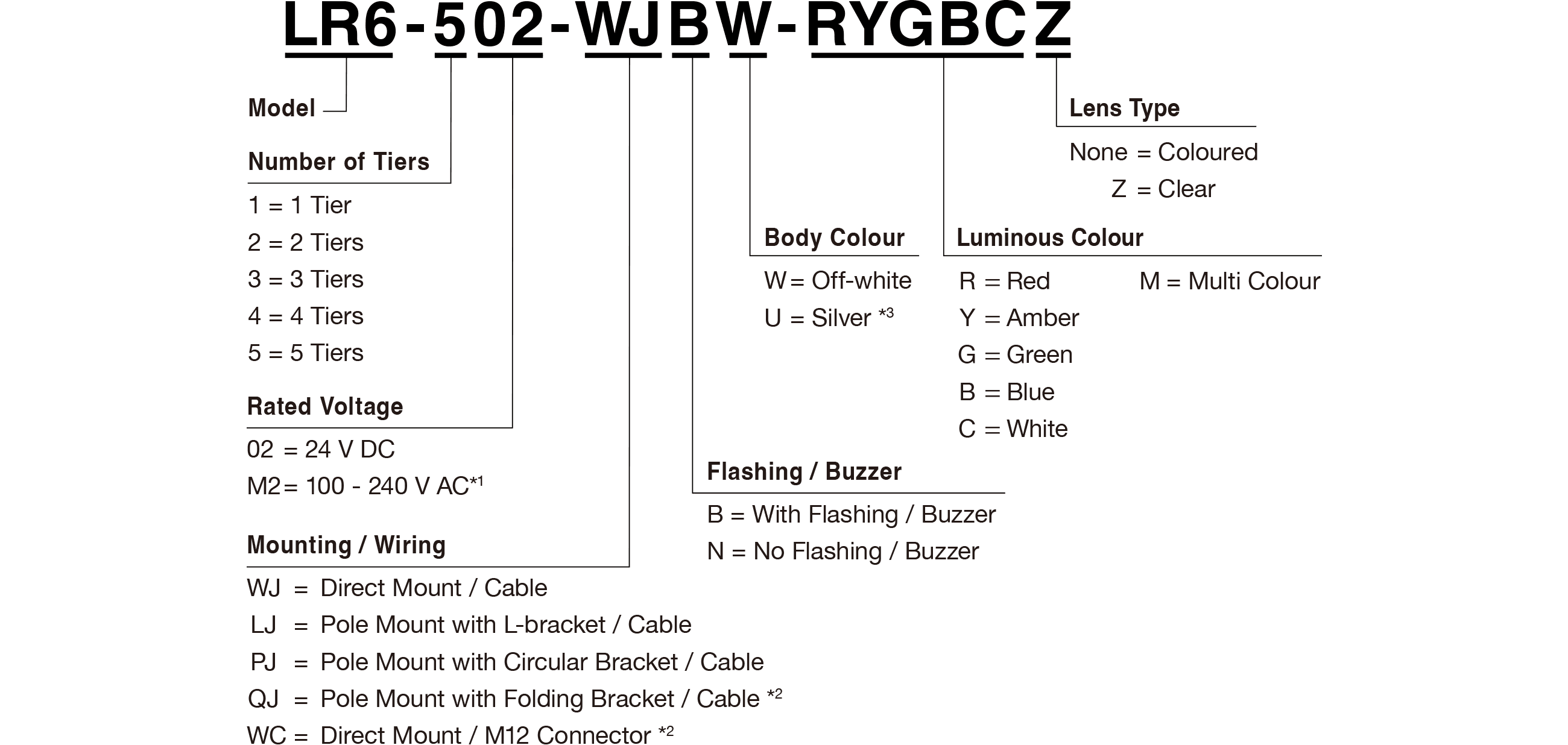

Model Code

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

LR6  

LR6  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

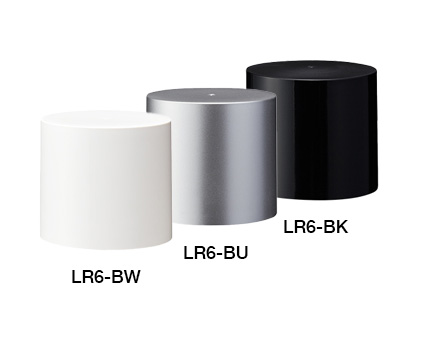

																Headcover
B32310072-7F1 1

																Filter Sheet: LR6 (5 pieces)
B25310067-6F1 1-5: Depends on the number of tiers.

																O-ring: LR6 (5 pieces)
B25110067-F1 2~7  Depends on the number of tiers.

Package contains 5 pieces.


																LR6 Pole Bracket
B22210161-7F1 1

																Waterproof Ring
B25110047-F1 LJ type : 1   PJ/QJ type : 2

																Hexagonal Nut: M22
S33533110-222F1 2

																Flat washer: M22
S33642010-222F1 2
