Manual Control Signal Tower Light (LR5)
HSST-3M2

Highly efficient, manually controlled signal tower kit with a corded switch box for easy operation. Ideal for workstations or call light applications.

  • Signal Tower
  • Φ50
  • Continuous on
  • Indoor
  • IP54 (Signal Tower: upright)
  • IP20 (Switch Box)
  • Red
  • Amber
  • Green
  • Manual Control Signal Tower Light (LR5)  HSST-3M2

Product Features

HSST KIT INCLUDES:

  • Signal Tower with 3 LED segments (Red, Amber, Green) with a pre-wired, 4' cable
  • 100-240V AC power supply with 5' cable
  • Control box with 3 latching buttons and mounting screws
  • 2-position mounting bracket with 2 adjustment screws, ideal for din rail or partition mounting
  • 3" and 12" mounting poles

Features





Specifications

Dimensions - Φ50mm x 307 (short pole)
- Φ50mm x 507 (long pole)
Rated Voltage - 100-240VAC
Body Colour Off-white
Functions - Continuous Lighting
- Manual Control
Mounting - Bracket-clamp Mount
- Wall Mount
- Cubicle-edge Mount
Stackable Tiers - Available only as a three-tier tower
Module Colours - LED Colour: Add (Only Red/Amber/Green are available)
- Lens Colour: Clear (Shows colour when activated)
Conformity Standards - RoHS
- FCC
- UL48
-*EN61000-6-4, EN61000-6-2 EN61000-3-2, EN61000-3-3
Protection Rating - IP20 (Switch Box)
- IP54 (Signal Tower)

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

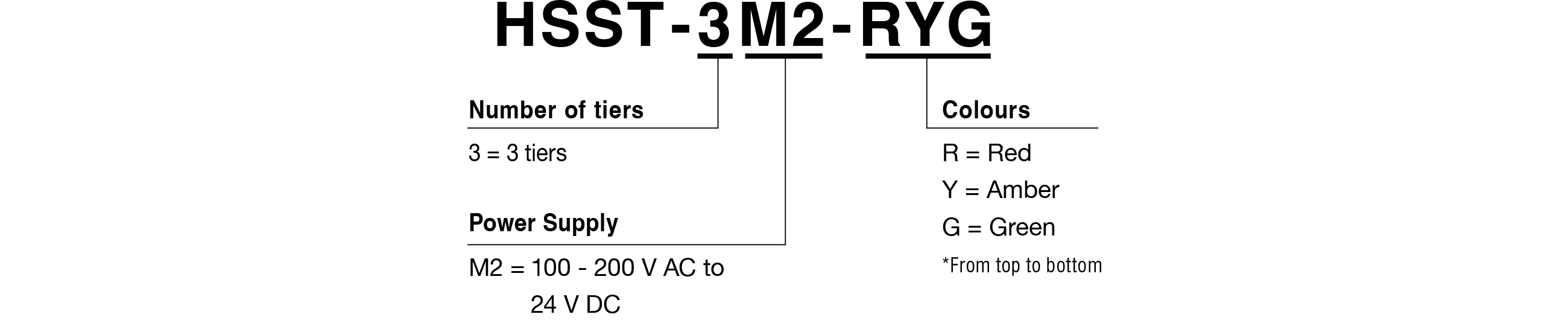

HSST-3M2  

HSST-3M2  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover: Off-white
B32310071-7F1 1

																LED Unit: Red (clear lens)
B72100248-1F1 1

Includes O-ring.


																LED Unit: Amber (clear lens)
B72100248-2F1 1

Includes O-ring.


																LED Unit: Green (clear lens)
B72100248-3F1 1

Includes O-ring.


																Filter Sheet (5 pieces)
B25310067-5F1 3

Package contains 5 pieces.


																O-ring (5 pieces)
B25110066-F1 5

Package contains 5 pieces.


																Pole Bracket: Off-white
B22210160-7F1 1

Kit includes O-ring, Waterproof Ring and self-tapping screw (2 pieces)


																Waterproof Ring
B25110047-F1 1

																Switch Box
T16000002-F2 1

																Double-sided Tape (5 pieces)
B96110002-F1 1

Package contains 5 pieces.


																Bracket
T85130016-F1 1

																Accessory Assembly
T81800030-F1 1

Miscellaneous items included with product.
Tightening Screw、 Fitting Plate、Double-sided Tape、
Tapping Screw (3×18) (2 pieces)
