Pole Mount Base Units with Terminal for LR5, LR7
LR5/LR7 Screwless Terminal

Explore our Pole Mount Base Units for LR5 & LR7, featuring Φ50mm & Φ70mm compatibility with easy-to-use, removable screwless terminals for efficient setup.

  • I/O Control
  • Signal Tower
  • Φ50
  • Φ70
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 75dB
  • 80dB
  • 85dB
  • 90dB
  • Indoor
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White
  • Pole Mount Base Units with Terminal for LR5, LR7 LR5/LR7 Screwless Terminal
  • Ideal for businesses that need to customise signal towers for various customers.
  • Built-in knock-out holes make it easy to convert the LR5 or LR7 series signal towers from pole mount to direct mount.
  • Removable screwless terminal simplifies the wiring process.
  • Rated Voltage: 24V DC

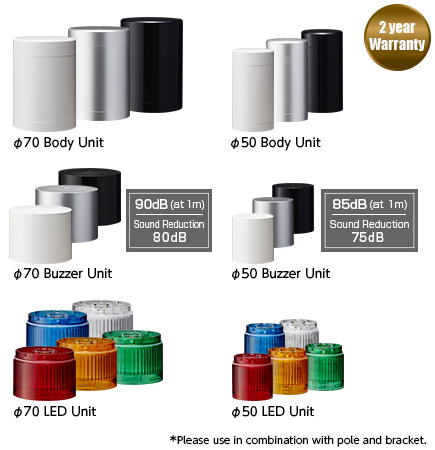

  • Available in Off-white, Silver, and Black body options.
  • Base unit only. LED units and sound modules sold separately.

A new removable terminal for easier wiring.

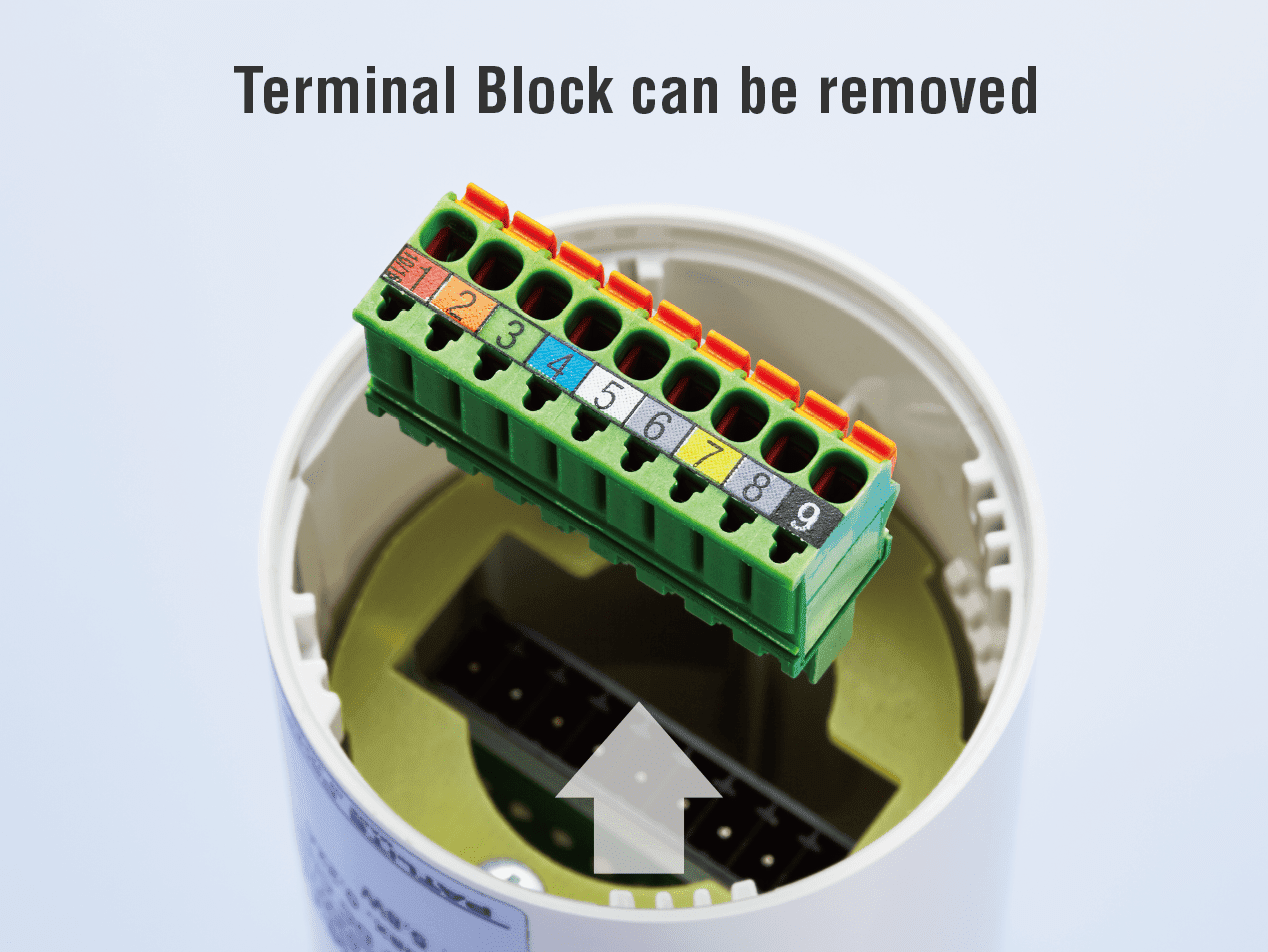

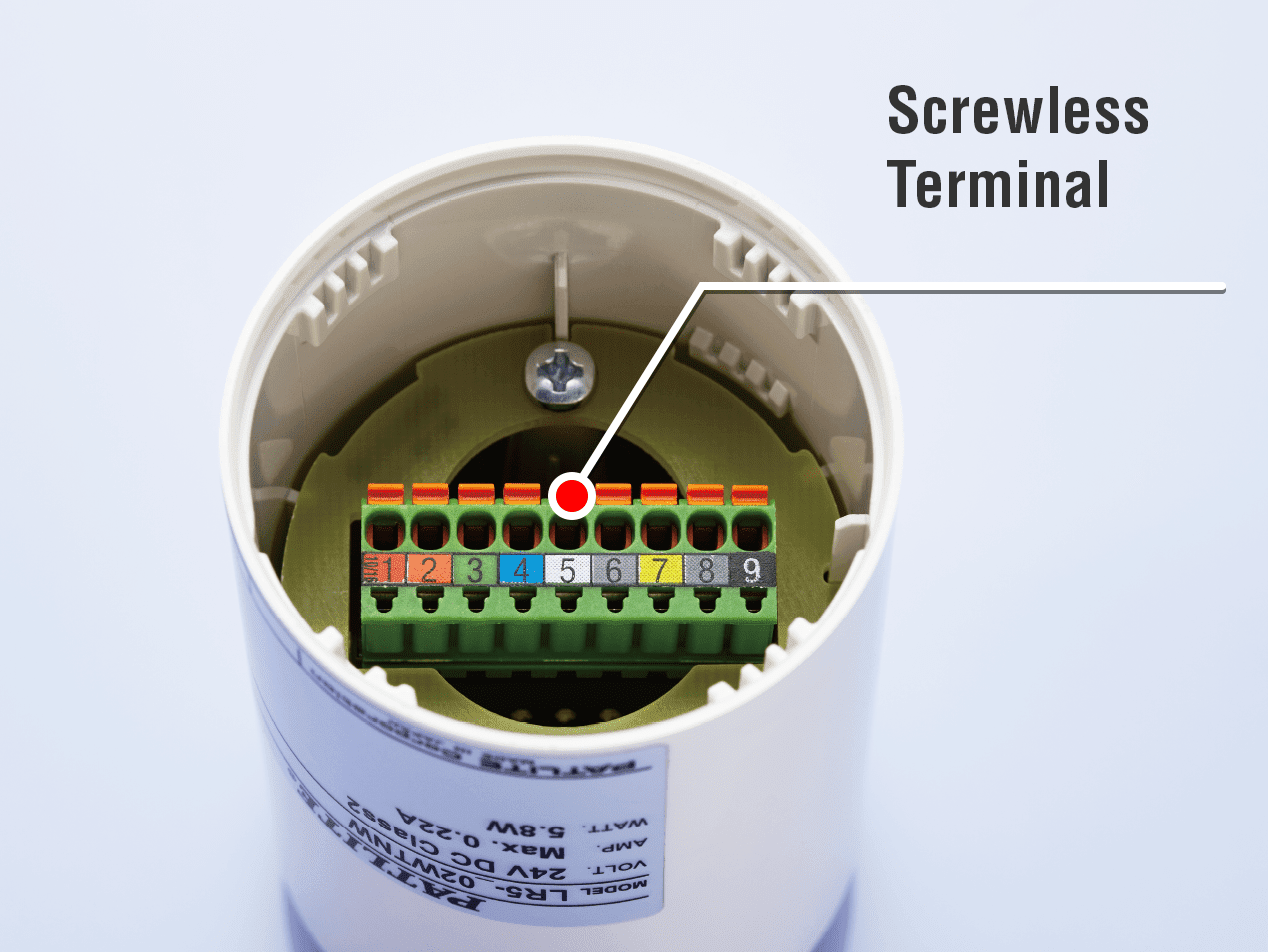

Screwless Terminal Terminal Block can be removed



Specifications

Operating Ambient Temperature -20℃ - +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ - +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at 500V DC between the power input lead and chassis
Withstand Voltage 500V AC for 1 minute between terminals and chassis without breaking insulation (M2: 1500V AC for 1 min.)
Flash Rate 60 ±2 Flashes / min
Sound Level LR5Typ. 85dB  LR7Typ. 90dB
Sound Reduction*2 ab. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound 4 patterns*2
No.1 Rapid Intermittent sound
No.2 Continuous sound
No.3 Rapid Hi-low
No.4 Sweep sound
Transistor Output NPN / PNP
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3

*1: LJ Type is IP54
*2: Dependent on DIP Switch Settings
*3: Except KT, Assembly Model WT and M2 LJ type



LED Unit Specifications

Light colour Red Amber Green Blue White
Current Consumption / Power Consumption Typ. 0.04A/1W
Max. 0.045A/1.3W



Buzzer Unit Specifications

Current Consumption / Power Consumption Typ. 0.04A/1W
Max. 0.3A/1.3W

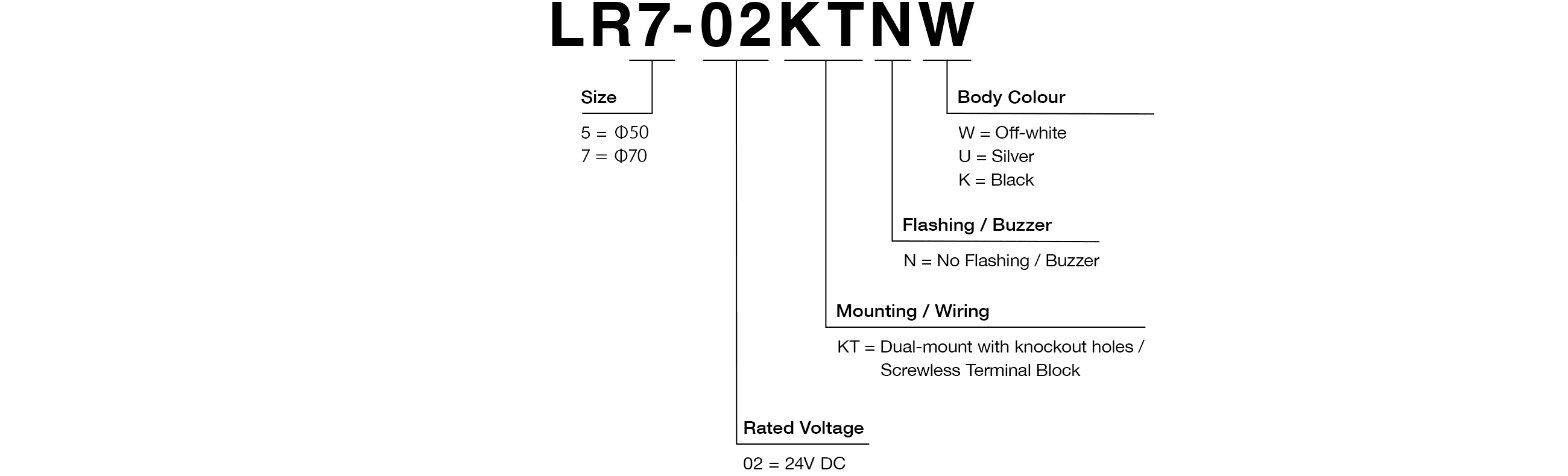

Model Code
