USB Controlled Multicolour Signal Beacon
NE-USB
USB Bus Power & Easy Control Multi-colour: 7 colours can be displayed to meet your application requirements.
- Network Products
- USB (Bus power)
- Touch sensor
- Φ56
- Signal Beacon
- Continuous on
- Alarm
- S□:65dB
- W□:88dB
- Indoor
- S□:IP20
- W□:IP65
- Multi-colour
Product Features
Product Features
- Supply power through bus power and controls with one cable when connected to a PC.
- The Touch Sensor model can send a signal to an upper-layer device by simply touching the top of the beacon, eliminating the need for a physical switch.
- Easy programming using the DLL software library. It can also be controlled by various protocols, so operating systems other than Windows can be used.
- Control is possible without installing dedicated drivers because it is an HID class device.
- Ideal for office and retail applications. Get gentle yet noticeable notification with the soft light from the translucent lens and alarms that are easy on the ear.
- Neodymium magnet type allows easy installation on desks and walls. In addition, the 1/4 inch screw receptacle supports a wide range of mounting methods such as tripods. *NE-S□-USB
- Pole mount and wall mount options available (NE-001D for pole-mounting and NE-002D wall-mounting).
* A USB cable (type A male to type C male) is not provided. To be obtained separately by the customer.
* Programming knowledge required to control unit from PC via USB port.
| Model | NE-S□-USB | NE-W□-USB | ||
|---|---|---|---|---|
| Rated Voltage | 5V DC (USB Bus Power) | |||
| Size | Φ56 | |||
| Protection Rating | IP 20 | IP 65 (Upright) | ||
| Installation Example |  |
 |
 |
 |
| Magnet mounting | 1/4-inch screw mounting * Please obtain tripod separately. |

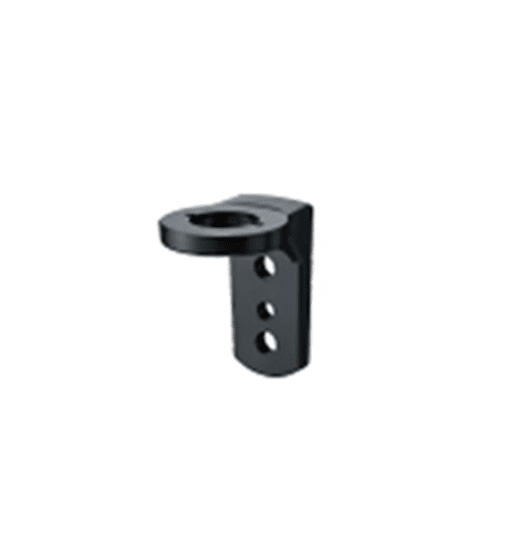

Wall mounting bracket | Pole mounting （pole bracket） |
|
Model Number Configuration
