Unit-securing Screw(LR10)
LR10-S-1/2/3/4/5
Set of two screws used when changing the number of tiers.
- Options
Product Features

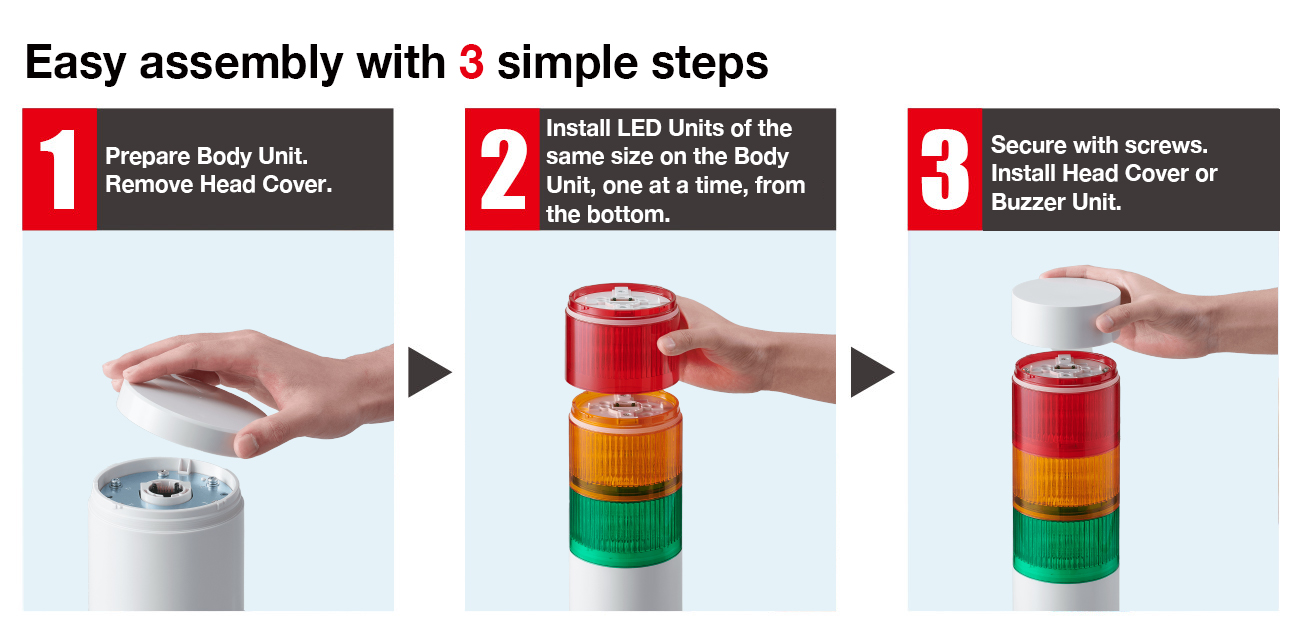

Use this 2-screw set when changing the number of tiers for the LR10 series.
Please purchase corresponding screws for the desired number of tiers.
Compatible model: LR10
Please purchase the LED Unit separately according to your needs.
If only a Buzzer Unit is being added, the Unit-securing Screws are not necessary.
For details, please refer to the Buzzer Unit (LR10) page.
Model | Number of tier |
LR10-S-1 | For 1-tier |
LR10-S-2 | For 2-tier |
LR10-S-3 | For 3-tier |
LR10-S-4 | For 4-tier |
LR10-S-5 | For 5-tier |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
Product Specifications
