Wall Mount Signal Tower – Multi-Colour LED Model with LAN Control
WE-LAN

LAN-controlled LED signal tower designed for seamless integration into public and industrial spaces. Offers vibrant, synchronised lighting in 9 colours, directional flowing effects, and gentle firefly-style blinking—ideal for machinery alerts, crowd guidance, and room status indication. Supports HTTP, Modbus, and Socket protocols.

  • Ethernet
  • Signal Tower
  • W90×D37.5
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 88dB
  • Indoor
  • IP23
  • Red
  • Amber
  • Lemon
  • Green
  • Cyan
  • Blue
  • Purple
  • Pink
  • White
  • Multi-colour (9 colours)
  • Wall Mount Signal Tower – Multi-Colour LED Model with LAN Control WE-LAN

Multiple display modes for varied applications

(All tiers illuminate and flash in the same colour / 9 colour options / Flowing display / Pulsing)
Click here for a video demonstrating the lighting patterns.

Immediate visibility
All tiers illuminate and flash in the same colour

  • Significantly more conspicuous than conventional single-tier alerts.
  • For critical alerts, such as emergencies or natural disasters, a high-intensity flash can be enabled.

Ideal for machinery fault indication and emergency notification.

Ideal for machinery fault indication and emergency notification.

Clear differentiation
9 colour options

  • Offers nine colour selections (red / amber / green / blue / sky blue / purple / pink / lemon yellow / white) to classify status types.
  • Facilitates machine-specific identification and operational status.
  • Alternative colours available for environments where red is not permitted, such as commercial premises and healthcare facilities.

Recommended for production facilities and commercial sites with multiple devices.

Recommended for production facilities and commercial sites with multiple devices.

Directional indication
Flowing display

  • Sequential illumination provides a visual cue for direction or process stage.
  • Effectively communicates movement or progression using intuitive lighting.

Suited for guiding flow direction in transport hubs or public venues.

Suited for guiding flow direction in transport hubs or public venues.

Soft signalling
Slow (single) flash

  • Equipped with a dim, intermittent lighting mode simulating a gentle ‘firefly’ blink.
  • Suitable for quiet environments such as offices, medical facilities, and care homes.

Effective for status indication in clinics, meeting rooms, and care environments.

Effective for status indication in clinics, meeting rooms, and care environments.

Safe and Easy Operation

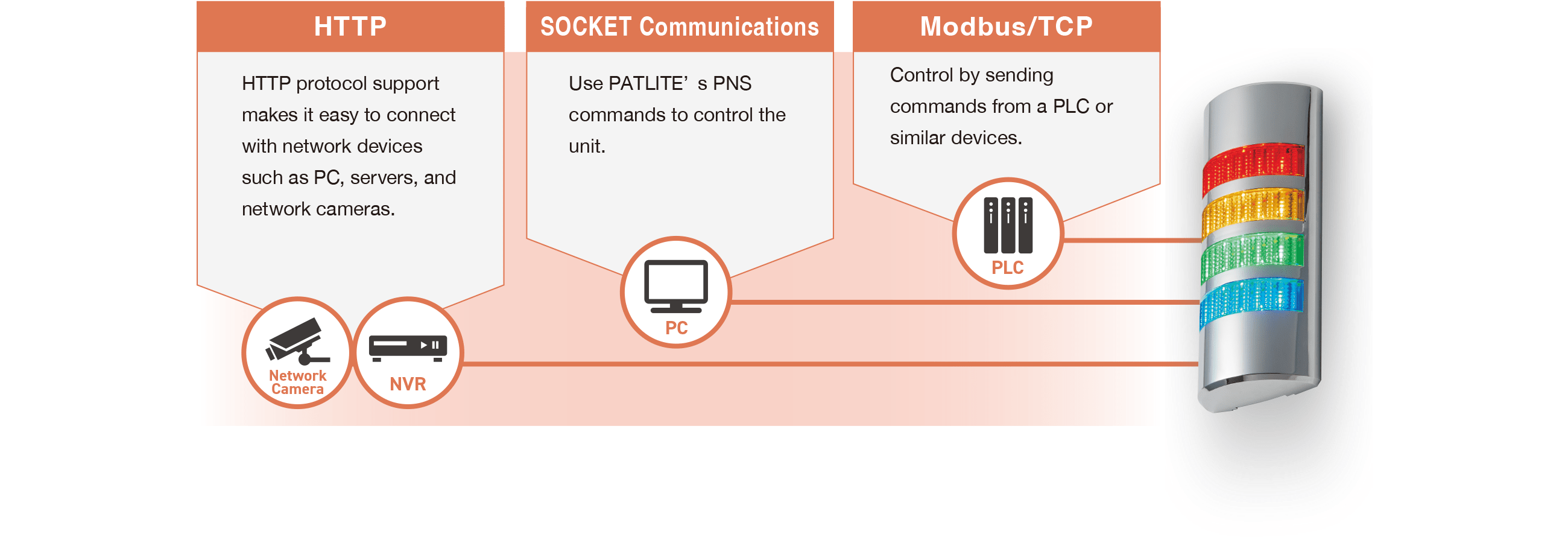

Simplified control via standard communication protocols

Supports general-purpose protocols such as HTTP and Modbus TCP/UDP, enabling integration with minimal development effort.
SOCKET-based communication is also available. Devices can be controlled using PATLITE’s proprietary PNS commands, allowing seamless replacement of existing models.

Effortless installation with RJ-45 interface

The unit is equipped with an RJ-45 female connector, enabling direct connection to standard LAN cables. Compared with conventional discrete-wired units, this significantly reduces wiring labour. Units can be easily disconnected and reconnected for maintenance or replacement.

Additional Features

  • Compact 37.5 mm housing for seamless equipment integration
  • Network settings (e.g., IP address) can be configured via a web browser
  • Certified to various international standards—suitable for global applications

Application-Specific Design

Enhanced visibility in yellow-coloured environments

Before
In yellow environments, the amber signal may not be distinguishable due to similar chromaticity, making it difficult to confirm light activation.
After
By adjusting the chromaticity toward green, the Lemon Yellow output remains clearly visible.
Signal Tower LED colours on chromaticity chart
Signal Tower LED colours on chromaticity chart
Image: Yellow Room
Yellow-coloured environment

Lighting Patterns

Lighting Pattern 01

Light off

Lighting Pattern 02

Standard colors

Lighting Pattern 03

Other colors

Lighting Pattern 04

All same color

Model Code



Model Cover Specification Number of Levels Rated Voltage
WE-402UB-LAN Chromed 4 DC24V
Model Cover Specification Number of Levels Rated Voltage
WE-402UB-LAN Chromed 4 DC24V

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

WE-LAN  

WE-LAN  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Cover
GA0006702-F1 1

-

-
