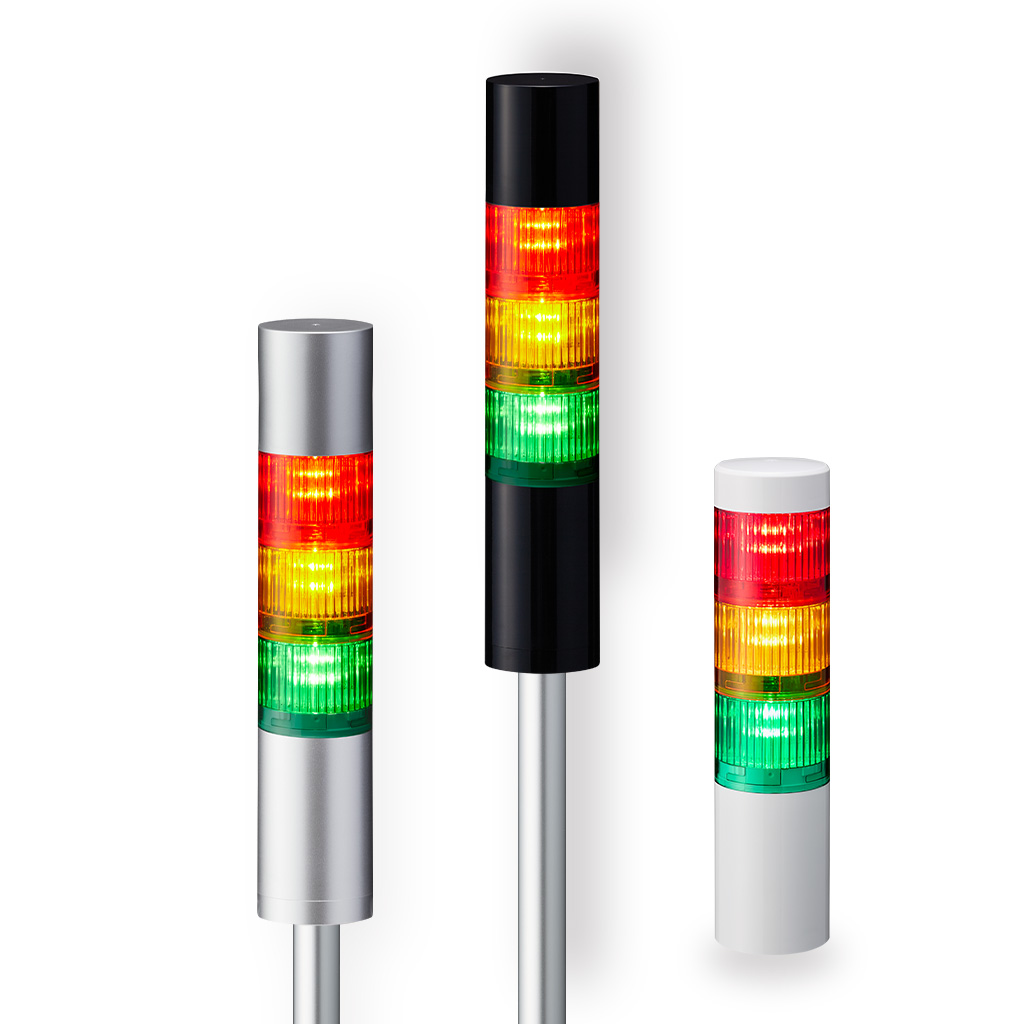

LR5-LAN

Direct LAN Control from Industrial PCs and PLCs

Straightforward Configuration and Flexible Notification Setup

Φ50mm
HTTP(S)
Modbus/TCP
SOCKET
EtherNet/IP
IP65/IP54

Rated Voltage	24V DC
Number of Tiers	Up to 5
Body Colour	Off-white / Silver / Black
Mounting Method	Direct Mount / Pole Mount with L-bracket / Short Pole Mount with L-bracket
IP Rating:	IP65 (Direct Mount) / IP54 (Pole Mount / Short Pole Mount)
Communication Protocol	HTTP(S) / Modbus TCP / SOCKET (LR5-LAN) EtherNet/IP (LR5-LAN EtherNet/IP)
Sound Pressure Level	85 dB (at 1m)

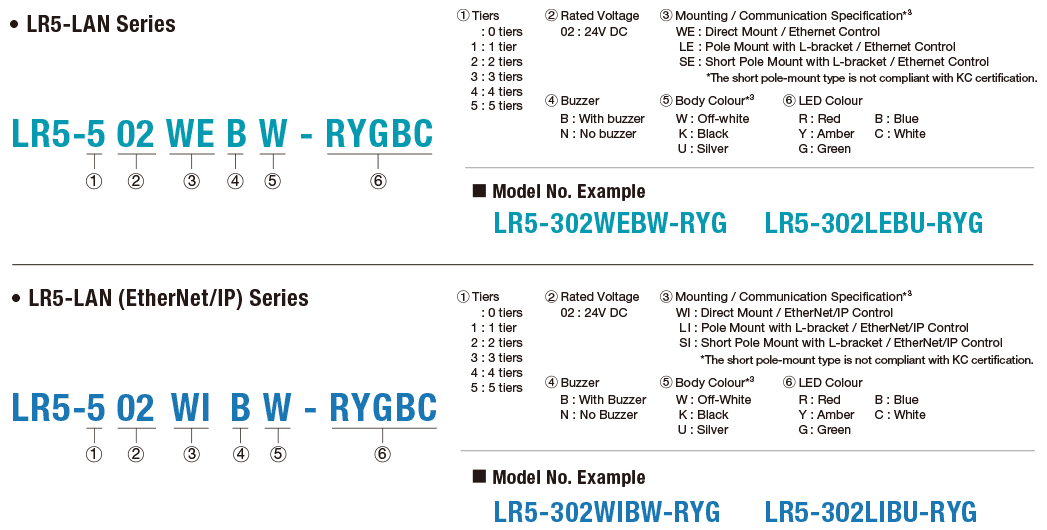

Model Number Configuration

Features
Function
Applications

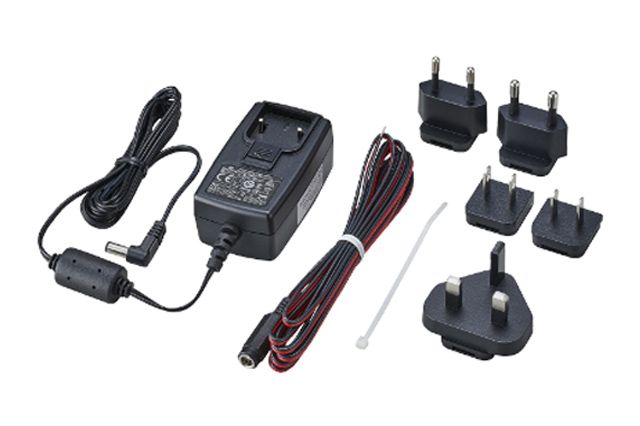

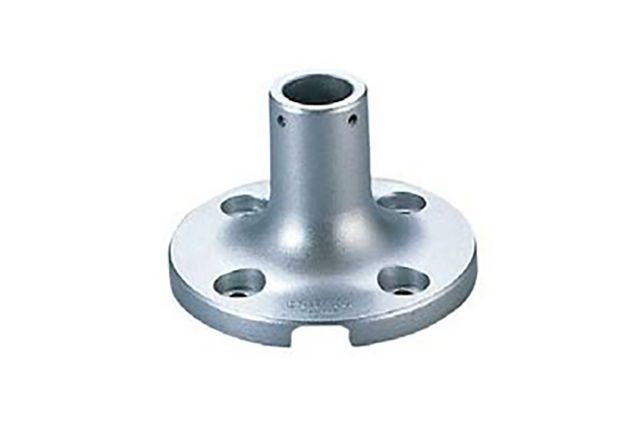

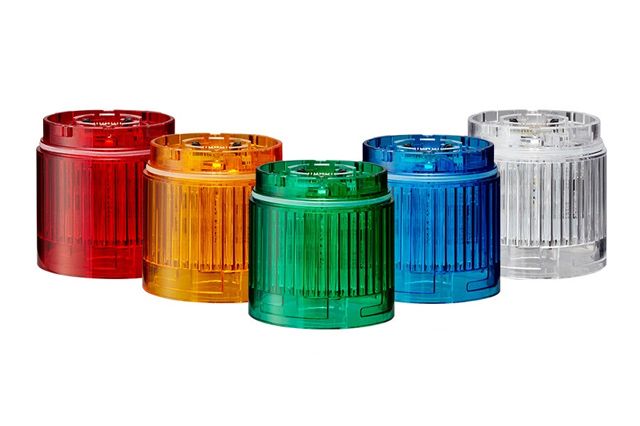

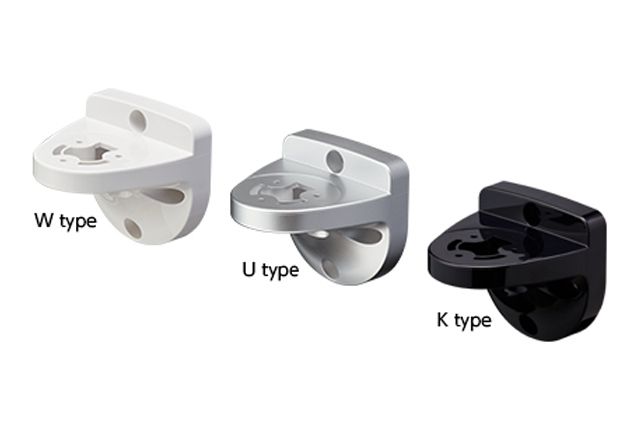

Optional Parts

Compatible with EtherNet/IP, a widely adopted industrial network protocol

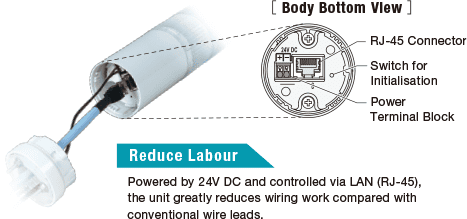

Significantly reduces wiring requirements
LAN connectivity eliminates the need for I/O modules, reducing overall system costs
Enables remote diagnostics, status monitoring, and data logging
Supports real-time control via PLC integration
Allows flexible signal control through software configuration

LR5-LAN Compatible Functions
Protocol	Socket	✔
	Modbus/TCP	✔
	HTTP(S)	✔
	EtherNet/IP	—
Monitoring	PING	✔
Monitoring	Modbus/TCP	✔

LR5-LAN EtherNet/IP Compatible Functions
Protocol	Socket	—
	Modbus/TCP	—
	HTTP(S)	—
	EtherNet/IP	✔
Monitoring	PING	✔
Monitoring	Modbus/TCP	—

Direct LAN control eliminates the need for output boards, reducing system cost and maintenance effort.

By supporting direct LAN-based control, LR5-LAN removes the requirement for additional output boards, simplifying system architecture and reducing installation and ongoing maintenance costs.

System configuration without output board using LR5-LAN

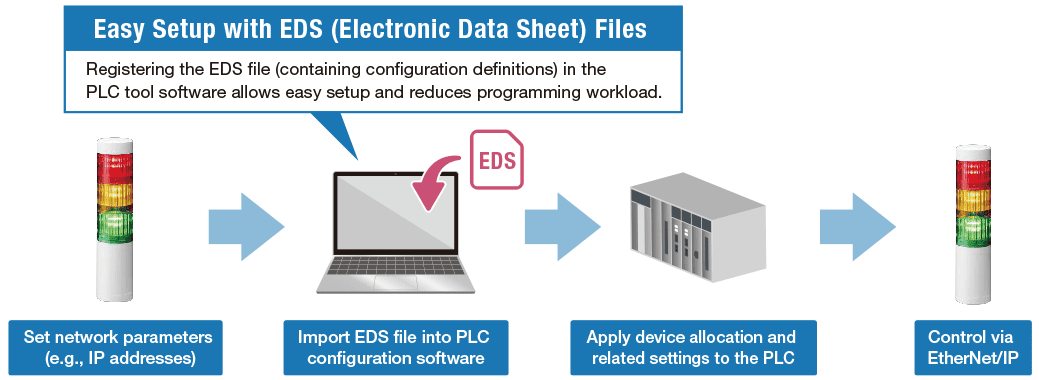

Integrated control and monitoring over EtherNet/IP using LR5-LAN

Integrated Control and Data Exchange for Factory Automation

EtherNet/IP-compatible signal towers designed to meet the communication and control requirements of modern factory automation environments (LR5-LAN EtherNet/IP Series).
