MP3 Voice Annunciator for Panel Mounting
BDV
The BDV MP3 Voice Annunciator for Panel Mounting provides high-quality sound output up to 87 dB in a compact design. It supports MP3 message updates via SD card and features user-friendly front controls for playback mode and volume. With IP54 protection, CE conformity (24V version), RoHS-compliant lead-free solder, and NPN open-collector compatibility, it is ideal for noisy industrial settings and globally deployed control panels.
- I/O Control
- □80
- MP3 Annunciator
- Voice
- 87dB or more
- Indoor
- Outdoor
- IP54
Product Features
- Available exclusively in flush-mount style.
- Despite its compact form, delivers a maximum sound output of 87 dB at 1 metre.
- Front-mounted volume control enables easy adjustment.
- Messages can be changed via SD card without removing the unit.
- Compliant with EU RoHS Directives for environmental sustainability.
- Multiple playback modes available for a range of operational requirements.
- Standard configuration includes binary input for selecting up to 15 messages.
- Supports signal input using NPN open-collector transistors.
- CE compliant (BDV-15JF model only) in accordance with applicable EU Directives.
- Available in two body colours to suit installation environments.
- Ingress protection: IP54 (front face only when flush-mounted)
Model Specifications
| DIMENSIONS | - 80 mm × 80 mm × 94.7 mm |
|---|---|
| RATED VOLTAGE | - DC 12/24 V - AC 100/220 V |
| BODY COLOUR | - Dark Grey - Light Grey |
| VOLUME | - Max. 87 dB at 1 metre |
| SOUND STORAGE | - Approx. 63 seconds of recording (bit rate: 64 kbps) |
| CHANNEL SELECTION | - Select one of four channels via signal input to one of four terminals - Binary mode allows selection from up to 15 channels via input combinations across four terminals |
| CONFORMITY STANDARDS | - CE - RoHS - Incorporates MPEG Layer-3 audio coding technology under licence from Fraunhofer IIS and Thomson Licensing |
| PROTECTION RATING | - IP54 |
| FUNCTIONS | - Volume reduction mode: decreases output by 10 dB |
Model Number Configuration

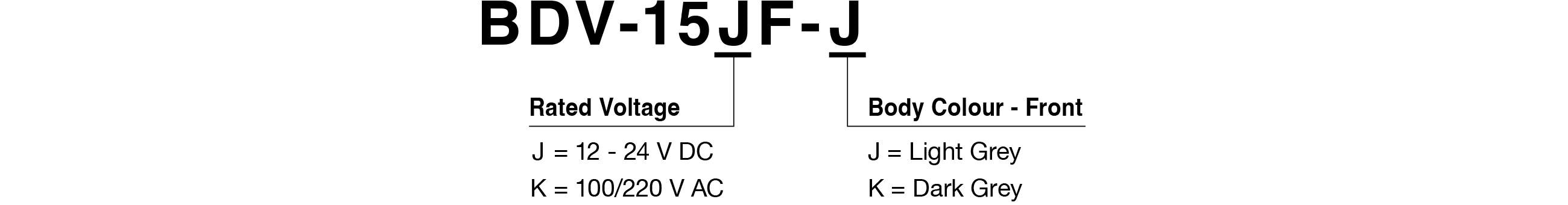

Model Code
Product List
| Model Number | Rated Voltage | Body Colour – Front |
|---|---|---|
| BDV-15JF-J/K | 12–24 V DC | Light Grey, Dark Grey |
| BDV-15KF-J/K | 100 / 220 V AC | Light Grey, Dark Grey |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Installation Manual_1 File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]Product Specifications
Other
repair parts
BDV
BDV
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
C25110015-F1 | 1 |
- |
- |
||
|
C15140003-F1 | 2 |
- |
- |
||
|
V82100001-F1 | 2 |
- |
- |
