75mm Voice Synthesiser
BSV
The BSV 75mm Voice Synthesiser is a slim MP3 annunciator delivering clear sound, easy panel mounting, and simple setup via SD card and free configuration software—ideal for compact panels and industrial use.
- I/O Control
- □75
- MP3 Annunciator
- Tones
- Voice
- 85dB or more
- Indoor
- Outdoor
- IP54
Product Features
・Slim Profile
Engineered to suit increasingly compact production environments, this model features our slimmest profile yet at just 19.9 mm depth.
Despite its compact body, it delivers a maximum sound output of 87 dB at a 1-metre distance.
Volume can be adjusted directly from the front panel, and with a low power draw of 3.5 W (max.), it minimises demand on your power supply.
・Front-Facing Access for Quick Installation
All maintenance tasks—installation, wiring, and volume adjustment—can be performed from the front, reducing downtime and simplifying access in confined spaces.
・Message Rewriting via SD Card
An integrated SD card slot (standard) allows direct rewriting of MP3 audio files.
Files can be managed either using the dedicated software or simply by renaming/replacing files on the SD card without any additional tools.
・Extended Audio Playback (BSV-L model)
The BSV-L version supports up to 520 seconds of MP3 audio playback (at 64 kbps), ideal for multilingual or detailed safety/operational instructions.
- Long Play Model: Approx. 520 seconds (Bit rate: 64 kbps)
- Standard Model: Approx. 63 seconds (Bit rate: 64 kbps)
Video
Model Specifications
| Rated Voltage | - 12/24 V DC |
| Mounting | - Panel mounting (upright orientation only) |
| Body Colour | - Dark Grey - Off-White - Silver |
| Volume | - Max. 87 dB at 1 m (Panel Mount) - Max. 85 dB at 1 m (Wall Mount) |
| Sound Storage | - Long Play Model: Approx. 520 s (64 kbps) - Standard Model: Approx. 63 s (64 kbps) |
| Channel Selection | - Bit Input: 4 - Binary Input: 15 |
| Conformity Standards | - CE - UKCA - RoHS |
| Protection Rating | - Panel Mount: IP54 (upright only) - Wall Mount: IP20 |
| Functions | - Standard Playback - Hold Playback - Priority Input Playback - Memory Playback |
| Remarks | - PNP Transistor compatible - NPN Transistor compatible |
| Options | - Playlist Editor 2 (free software) - SDV-2GP: SD card (for MP3 file transfer and storage) |
Sample (Sound / Audio)

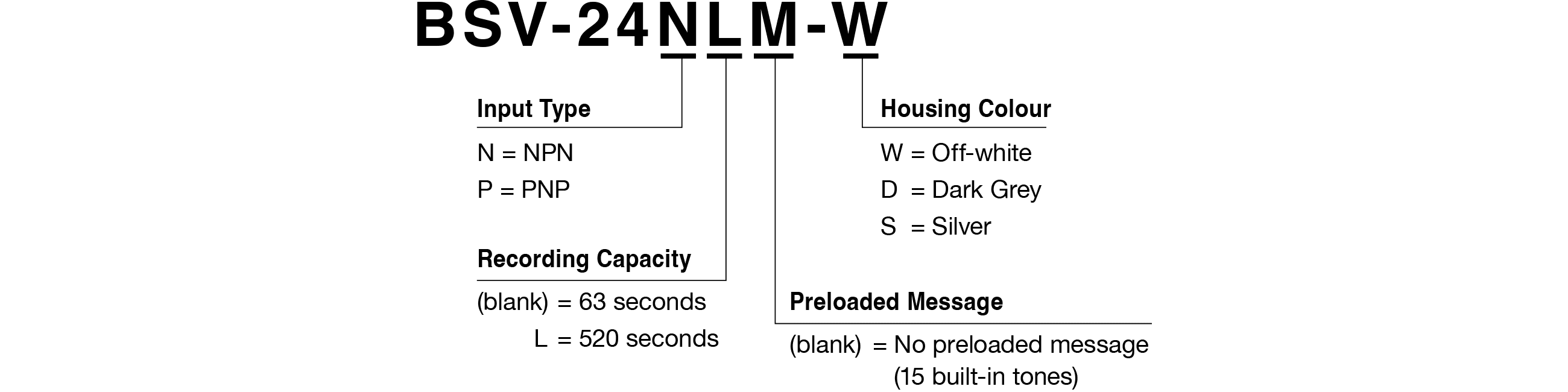

Model Number Configuration
Model Code
Product Line-up
| Model Number | Rated Voltage | Input Type | Recording Capacity | Preloaded Message | Housing Colour |
|---|---|---|---|---|---|
| BSV-24N(L)-W/D/S | 12–24 V DC | NPN | 63 s / 520 s | — | Off-White, Dark Grey, Silver |
| BSV-24P(L)-W/D/S | 12–24 V DC | PNP | 63 s / 520 s | — | Off-White, Dark Grey, Silver |
| BSV-24N(L)M-W/D/S | 12–24 V DC | NPN | 63 s / 520 s | ✔ | Off-White, Dark Grey, Silver |
| BSV-24P(L)M-W/D/S | 12–24 V DC | PNP | 63 s / 520 s | ✔ | Off-White, Dark Grey, Silver |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Installation Manual File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2DCAD[dxf]Product Specifications
Other
repair parts
BSV/BSV-L
BSV/BSV-L
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
V21110070-1F1 | 1 | ||||
|
V21110070-2F1 | 1 | ||||
|
Z33552121-0308F1 | 1 |
- |
- |
