Wireless Data Acquisition System WD PRO Transmitter
WDT-6LR-Z2-PRO
Wirelessly transmits signal tower status, external contact inputs, and serial communication data collected by the WD PRO Base Unit.
Facilitates advanced data acquisition for comprehensive analysis of equipment performance — empowering smarter decision-making, streamlined operations, and improved productivity.
- Wireless (Zigbee)
- Φ60
- Indoor
- Wireless
- IP65
Product Features
The WDT-6LR-Z2-PRO is exclusively compatible with the WDB-D80S-PRO
This transmitter unit is designed to mount onto the WDB-D80S-PRO, forming part of the advanced WD PRO system.
The WD PRO Wireless Data Acquisition System is a cost-effective, IIoT-ready enhancement for select PATLITE signal towers. It enables real-time, wireless transmission of status changes to a host PC, supporting remote monitoring and intelligent data analysis. Building on all the features of the original WD System, WD PRO adds powerful data collection functionality and a two-way wireless communication capability that allows remote control from a host PC. Optimise equipment utilisation, eliminate inefficiencies, and enhance your site’s Overall Equipment Effectiveness (OEE) with this comprehensive solution.
- Mounts to PATLITE LR6 signal towers for wireless transmission to the WD PRO receiver (WDR-LE-Z2-PRO).
- Enables integration of multiple machines into a single wireless monitoring network with centralised data logging.
- Two-way communication allows host PCs to control signal tower lights remotely.
- Supports wireless input from external sources such as PLCs and push-button switches.
- Capable of acquiring up to 60 bytes of serial data from devices like barcode scanners for quality control and traceability.
- Fully compatible with existing WD System networks in your facility.
Model Specifications
| Rated Voltage | 24 V DC |
|---|---|
| Size | ⌀60 mm |
| Protection Rating | IP65 |
| Wireless Specification | Zigbee 2.4 GHz |
| Corresponding Receiver | WDR-LE-Z2-PRO |

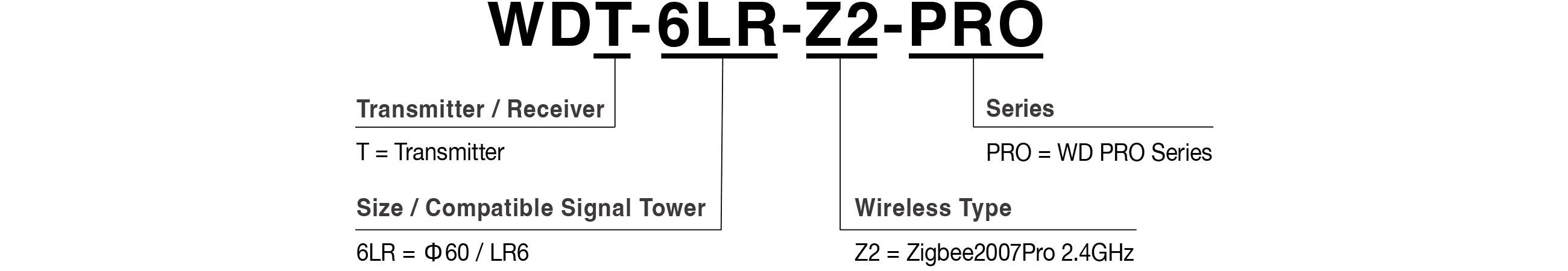

Model Number Configuration
Product List
| Model Number | Rated Voltage | Type | Size |
|---|---|---|---|
| WDT-6LR-Z2-PRO | 24 V DC | Transmitter | ⌀60 |
| WDT-6LR-Z2-PRO+FT019 (* ) |
This is the only product with wireless certification for Indonesia.
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Manual_Digest Version (En) File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]Product Specifications
repair parts
WDT-6LR-Z2-PRO
WDT-6LR-Z2-PRO
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
B32310072-7F1 | 1 | ||||
|
B25110067-F1 | 2～7 Depends on the number of tiers. |
Package contains 5 pieces. |
