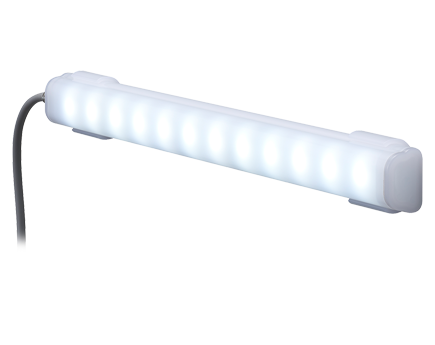

LED Work Light – Rugged & Hygienic
CLA-02
Suitable for control panels as well as food, beverage, and pharmaceutical facilities, this LED Work Light is IP67/IP69K rated and ECOLAB certified, withstanding high-pressure washdowns, chemical cleaning and sanitization processes.

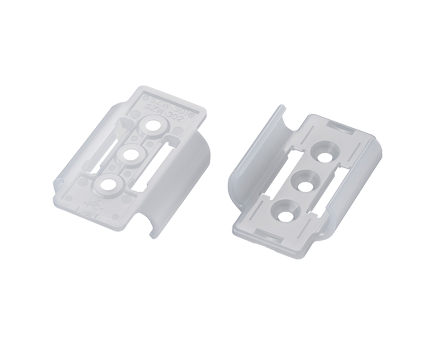

※Units include SZW-301 brackets
- 100/200/300/600/900
- LED Lighting
- Indoor
- IP66
- IP67
- IP69K
- Daylight
- Amber
Product Features
Brighter and More Energy Efficient
Rugged Build with Excellent Light Distribution

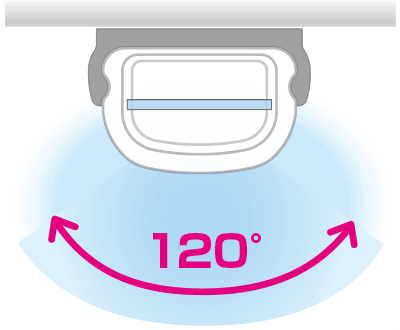

Compared to prior models: total luminous flux increased by 65% and illuminance is increased by 71%*. The seamless milky-white housing delivers uniform brightness across a 120° area. Luminous efficacy has also been significantly enhanced, making CLA-02 light both exceptionally bright and energy efficient.
Based on 300 mm size, daylight colour

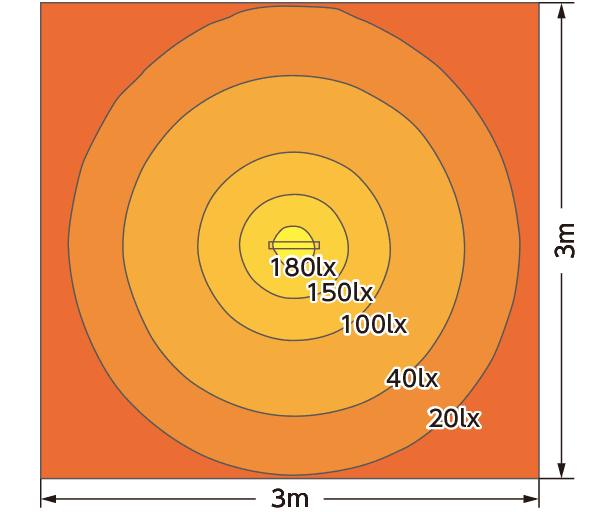

Illuminance Distribution (CLA3, at 1 m)
Values are calculated and may differ from actual measurements.

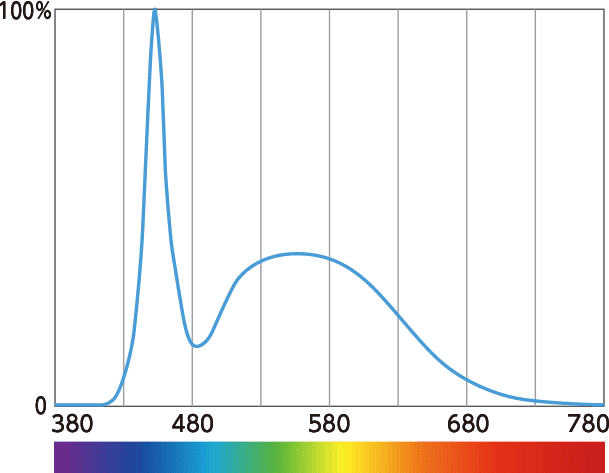

Spectral Distribution
(Relative Intensity)
Wavelength (nm)
High Durability and Hygienic Design
Withstands High-Pressure/High-Temperature Washdown, Chemical Disinfection and Sterilisation

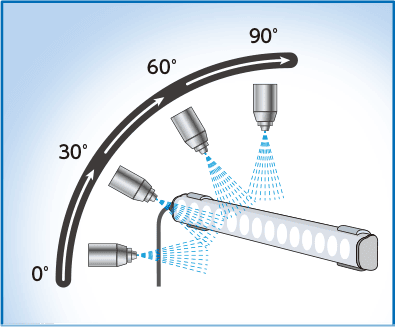

IP67/IP69K

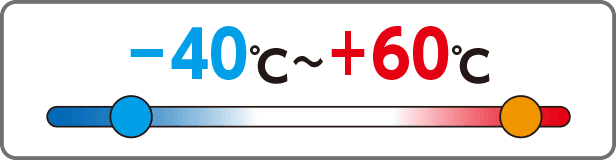

Impact-resistant polycarbonate housing prevents breakage and foreign object ingress. Operating temperature range: –40°C to +60°C. With IP69K protection, it is suitable for use in cold storage or equipment requiring high-temperature cleaning.
- Passed ECOLAB evaluation test*
- H2O2 resistance
Compatible with various cleaning agents and hydrogen peroxide sterilisation

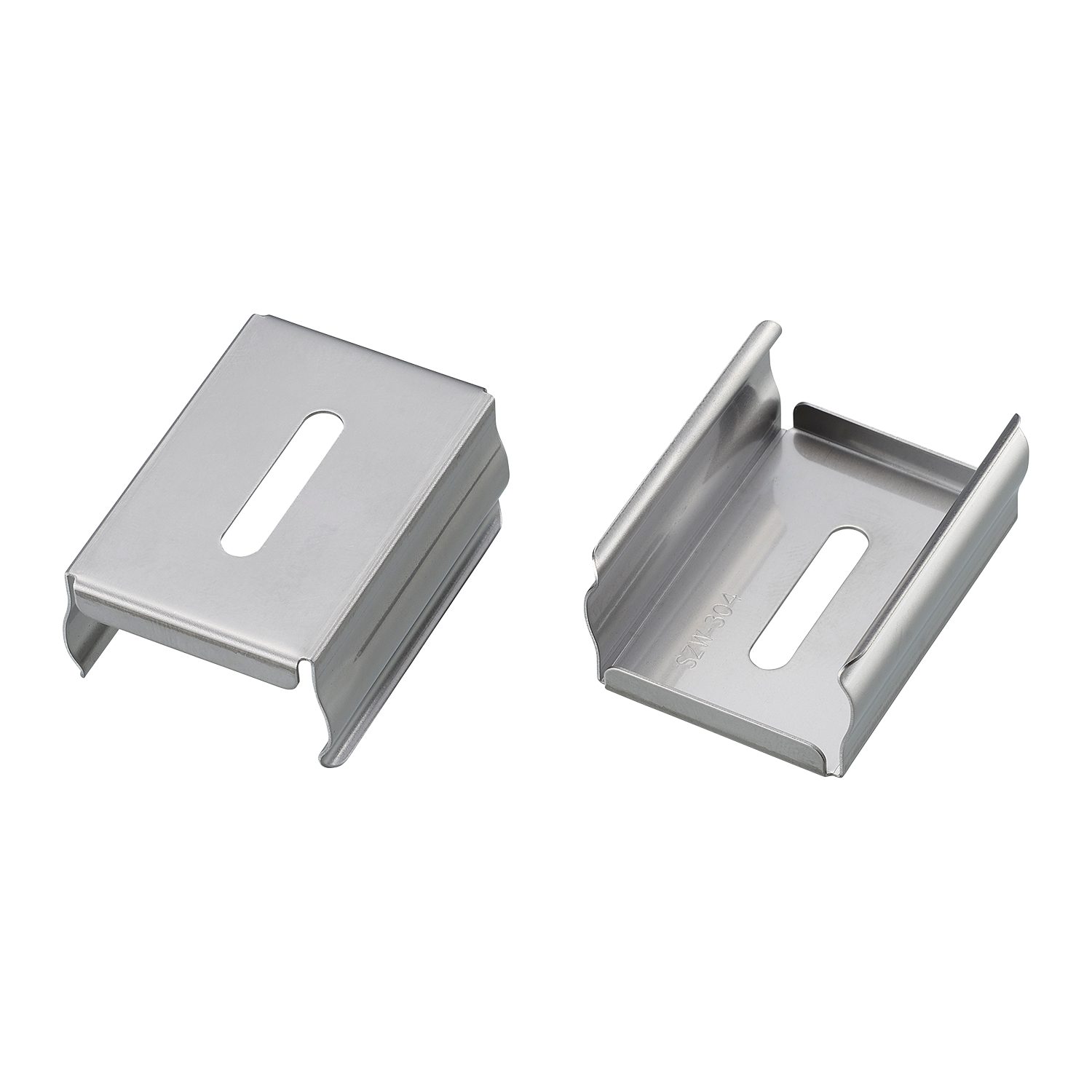

Tested and passed with the agents listed below (with SUS bracket SZW-304)
| Category | Product | Concentration |
|---|---|---|
| Alkaline detergent | Topaz MD6 | 5% |
| Acidic detergent | Topactive 500 | 6% |
| Chlorine-based alkaline detergent | P3-Topax 66 | 3% |
| Acidic, oxidising disinfectant | Topactive OKTO | 3% |
| Neutral detergent | P3-Topax 990 | 3% |
Easy Installation and Reduced Wiring Work

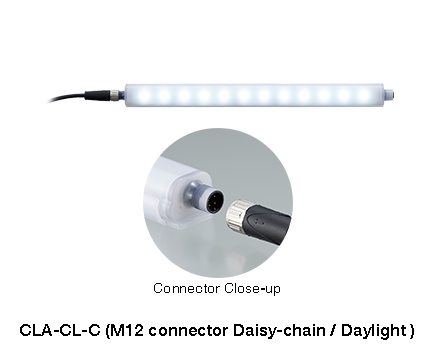

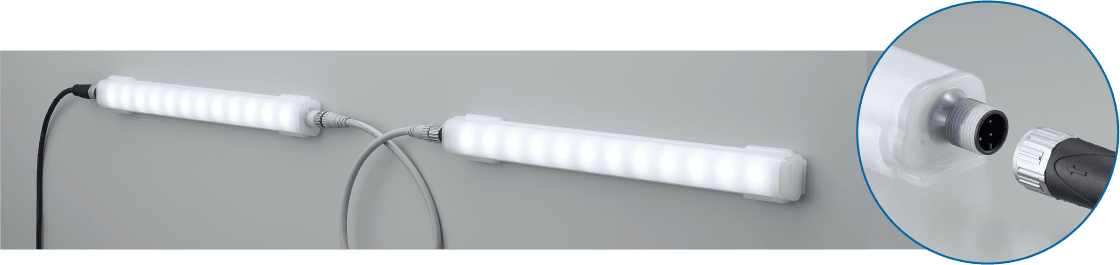

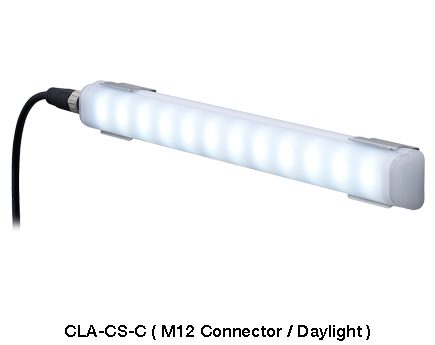

In addition to the cable connection (JS type), the CLA-02 offers an M12 connector (CS type) and an M12 connector daisy-chain option (CL type) to reduce wiring errors and labor.

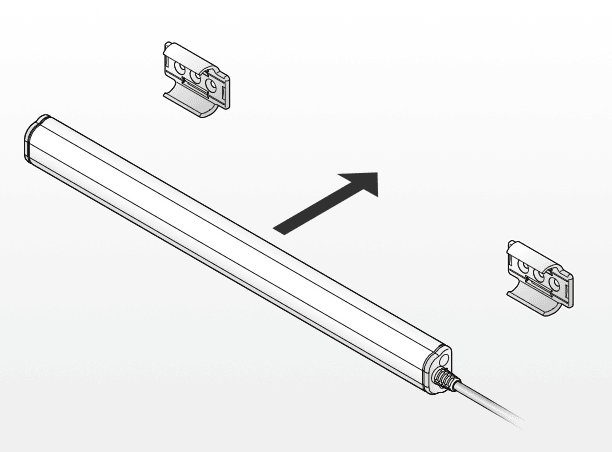

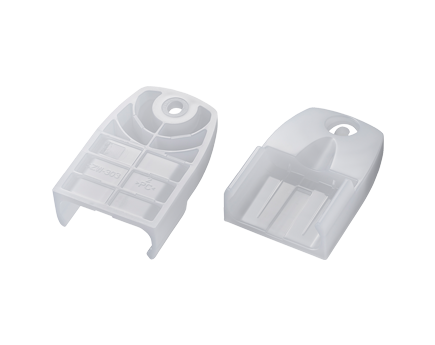

The slim housing can be easily installed with the supplied rear mounting bracket (SZW-301).Optional magnetic brackets and optional SUS brackets are available separately.

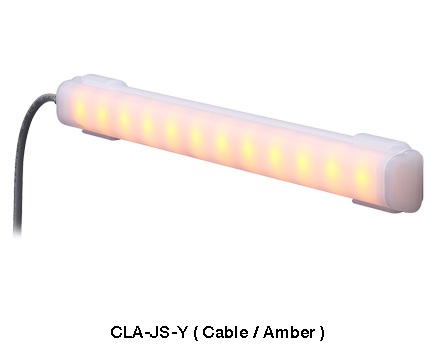

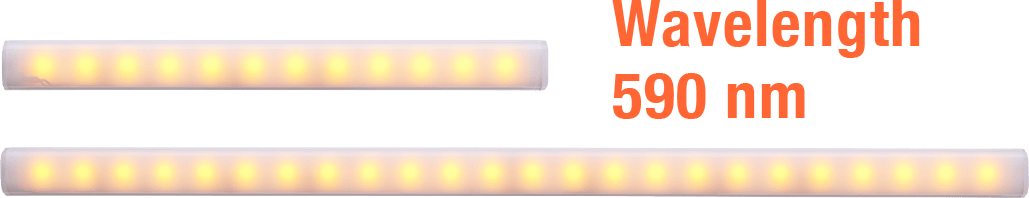

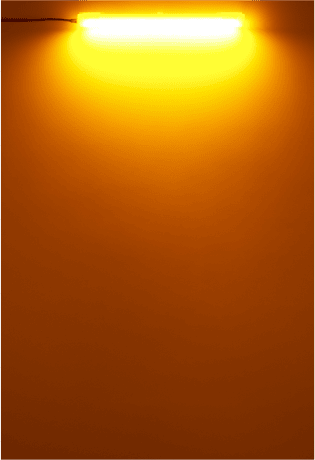

Amber LED for Semiconductor Applications
The CLA-02 Amber model is optimised for semiconductor photolithography processes. With a peak wavelength of 590 nm and almost no blue wavelength (430–490 nm) emission, it can be safely used for cleanroom lighting.

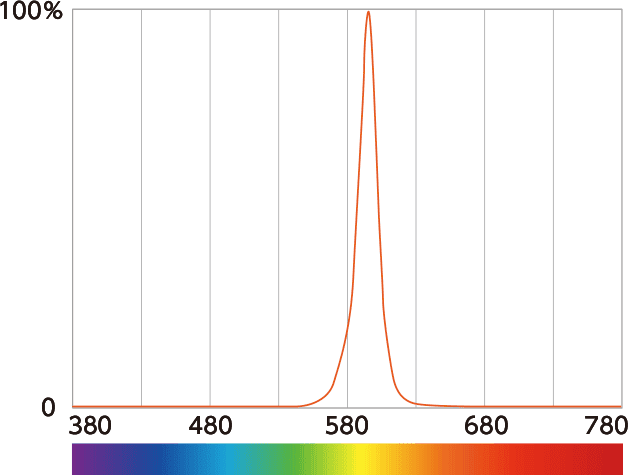

Spectral Distribution
(Relative Intensity)
Wavelength (nm)
Applications
Uniform Lighting Improves Work Efficiency

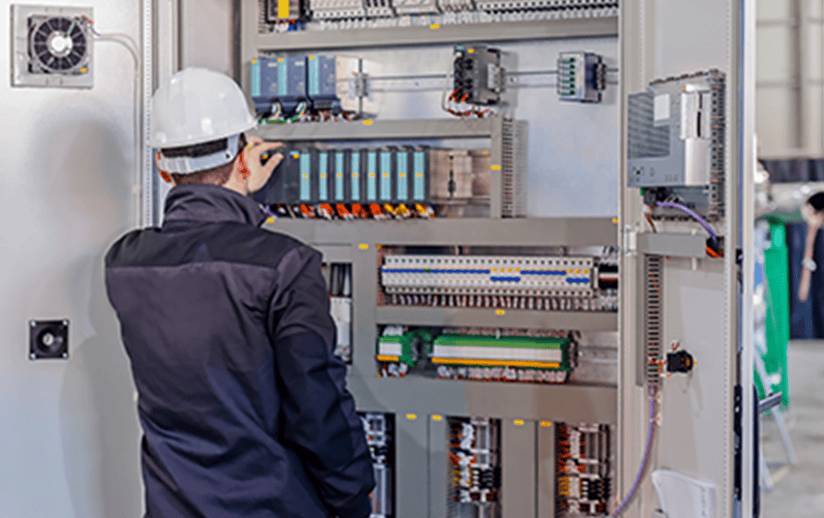

Control Panel
- Milky-white housing provides uniform light distribution
- Reduced wiring with M12 connector daisy-chain

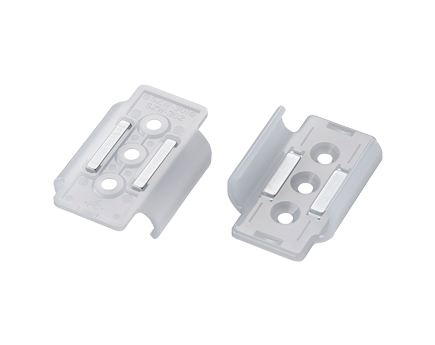

- Easy installation inside panel with optional magnetic bracket SZW-302
Durable Lighting Ensures Hygiene

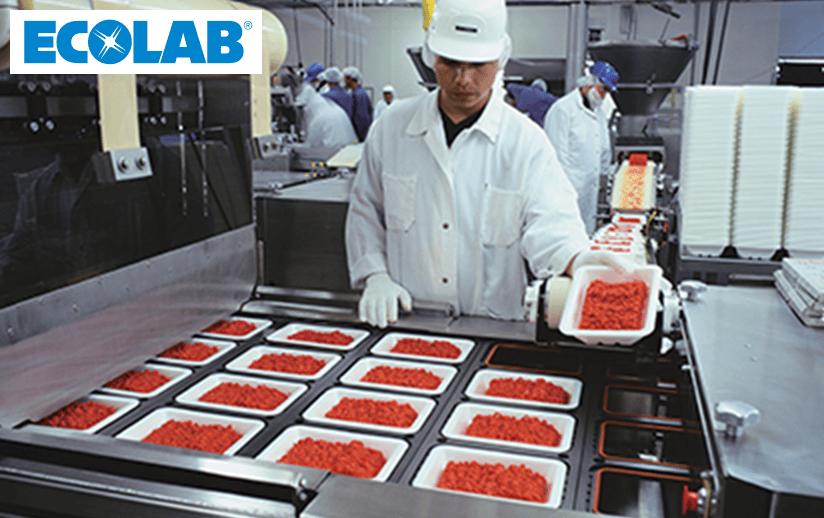

Food Processing Line
- IP69K protection for high-pressure, high-temperature washdown
- H2O2 resistant
If using alkaline detergents, confirm compatibility before use.
Prevents Unwanted Exposure in Photolithography

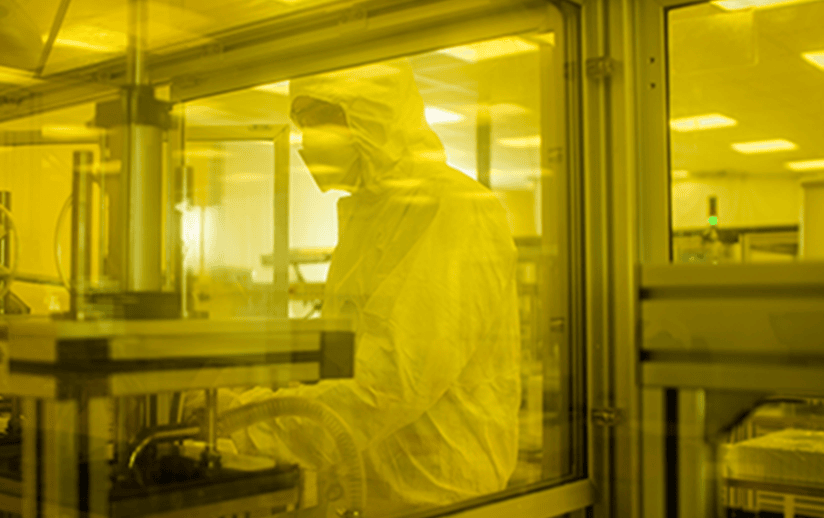

Semiconductor Factory
- Emission spectrum with 590 nm peak wavelength

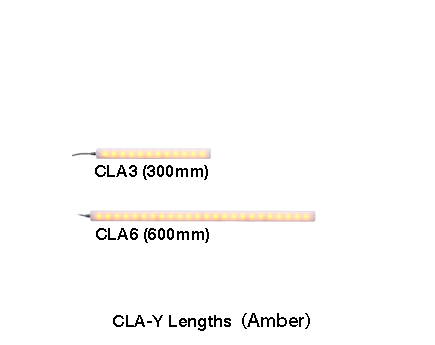

- Two size options (300 mm, 600 mm)
- Total luminous flux: 140 lm (300 mm), 280 lm (600 mm)
Model Number Configuration
Model Code

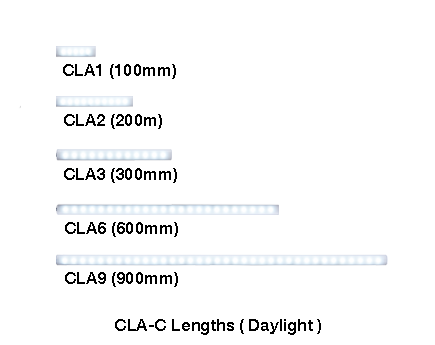

Product Lineup
| Model | Length of Illuminated Area Length | Rated Voltage | Wiring Type | Luminous Colour |
|---|---|---|---|---|
| CLA1-02JSN-C | 100mm | 24V DC | Cable | Daylight |
| CLA1-02CSN-C | 100mm | 24V DC | M12 Connector (4 pin) | Daylight |
| CLA2-02JSN-C | 200mm | 24V DC | Cable | Daylight |
| CLA2-02CSN-C | 200mm | 24V DC | M12 Connector (4 pin) | Daylight |

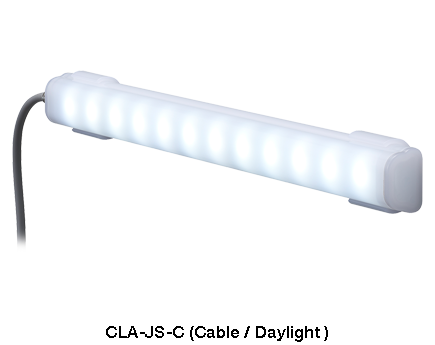

| CLA3-02JSN-C | 300mm | 24V DC | Cable | Daylight |
| CLA3-02CSN-C | 300mm | 24V DC | M12 Connector (4 pin) | Daylight |
| CLA3-02CLN-C | 300mm | 24V DC | M12 Connector Daisy-chain | Daylight |
| CLA3-02JSN-Y | 300mm | 24V DC | Cable | Amber |
| CLA6-02JSN-C | 600mm | 24V DC | Cable | Daylight |
| CLA6-02CSN-C | 600mm | 24V DC | M12 Connector (4 pin) | Daylight |
| CLA6-02JSN-Y | 600mm | 24V DC | Cable | Amber |
| CLA9-02JSN-C | 900mm | 24V DC | Cable | Daylight |
| CLA9-02CSN-C | 900mm | 24V DC | M12 Connector (4 pin) | Daylight |
Web Catalogue
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction Manual File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
-
2D CAD [dxf]
-
3D_CAD［IGS］(M12 Connector Daisy-chain)
-
3D_CAD［STEP］(M12 Connector Daisy-chain)
-
3D_CAD［x_t］(M12 Connector Daisy-chain)
Product Specifications
