Rotating Beacon with MP3 Voice Annunciator
RFV
LED Rotating Beacon with integrated MP3 Voice Annunciator, delivering clear voice messages at up to 95 dB. Features long-life LED lighting, adjustable volume, -15 dB night-time reduction, and supports SD card message updates. Beacon and sounder can operate together or independently. Includes NPN open collector input for direct PLC control. Available in red, yellow, green, and blue domes.
- I/O Control
- Φ100
- Rotating
- Hybrid Products
- Voice
- 95dB or more
- Indoor
- Outdoor
- IP54
- Red
- Amber
- Green
- Blue
Product Features
• Programmable in the field using an SD card (sold separately).
Up to 64 seconds of message data (64kbit/s) can be played back via bit input (4 channels) or binary input (15 channels).
• Adjustable volume range from 0 to 95 dB at 1 metre, suitable for diverse installation environments.
• Designed to withstand high-vibration conditions with a 4.5G vibration resistance structure.
• CE marked, RoHS compliant, IP54 rated (UL and c-UL certification pending).
• Notable Features:
1. Maintenance minimised by high-longevity power LED – designed for over 5 years of continuous operation (24/7).
2. Enhanced visibility through proprietary optical reflector.
3. Gear-driven mechanism ensures reliable operation even after 10 years of inactivity.
4. Secure dome lock mechanism remains fastened under strong vibration conditions.
Specifications
| DIMENSIONS | - Ø100 mm |
|---|---|
| RATED VOLTAGE | - 24 V DC - 100 V AC - 220 V AC |
| AUDIBLE STYLE | - Total recording time: 64 seconds Factory-preloaded for 4-channel bit input or 15-channel binary input * Incorporates MPEG Layer-3 audio coding licensed from Fraunhofer IIS and Thomson Licensing |
| VOLUME | - Up to 95 dB at 1 metre (adjustable) |
| BODY COLOUR | - Housing: Light grey |
| GLOBE COLOUR | - Red - Amber - Green - Blue |
| GLOBE MATERIAL | - Polycarbonate resin |
| PROTECTION RATING | - IP54 |
| OPTIONS | - RF-001 - RF-002 - SDV-2GP |

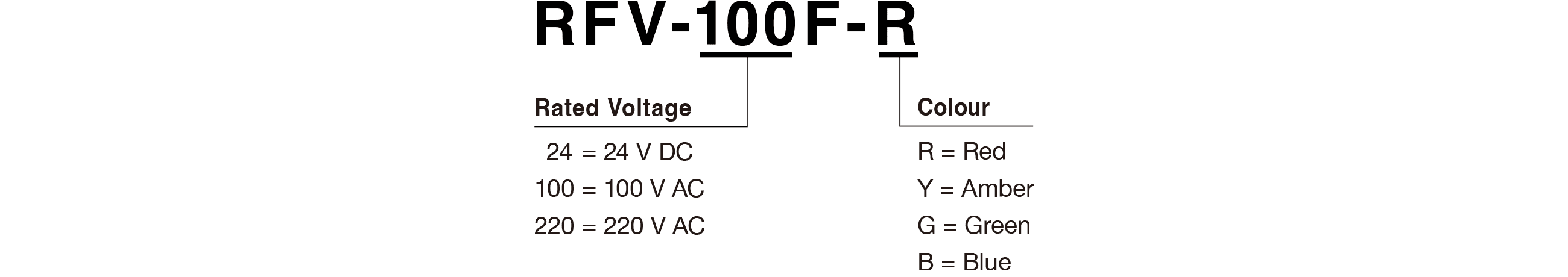

Model Number Configuration
Model Code
Product List
| Model Number | Rated Voltage | Colour |
|---|---|---|
| RFV-24F-R/Y/G/B | 24 V DC | Red / Amber / Green / Blue |
| RFV-100F-R/Y/G/B | 100 V AC | Red / Amber / Green / Blue |
| RFV-220F-R/Y/G/B | 220 V AC | Red / Amber / Green / Blue |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Installation Manual File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]Product Specifications
Other
repair parts
RFV
RFV
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
A31110064-1F1 | 1 | ||||
|
A31110064-2F1 | 1 | ||||
|
A31110064-3F1 | 1 | ||||
|
A31110064-4F1 | 1 | ||||
|
Z35721001-090F1 | 1 | ||||
|
A41110015-F1 | 1 | ||||
|
A55200018-3F1 | 1 | ||||
|
V21100084-F1 | 1 |
