Φ100mm Voice Synthesizer with LED Signal Light
LKEH-FV
Discover the Φ100mm Voice Synthesiser with LED Signal Light from the LKEH series. This robust combination of a large horn and signal tower light offers enhanced sound and functionality. For optimal use with the LKEH-FV model, acquire the Playlist Editor 2 software by contacting your local PATLITE representative.
- I/O Control
- Signal Tower
- Φ100
- Continuous on
- Flashing (Strobe)
- Hybrid Products
- Voice
- 105dB
- Indoor and upright only
- IP53
- Red
- Amber
- Green
- Blue
- White
Product Features
The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
In order for LKEH-FV to use, you would need to get Playlist Editor of the software.
If you would like to use software to input voice synthesis data, please contact your local PATLITE overseas office by email.
The Playlist Editor will be sent to you.
- Visible from great distance with ultra bright LEDs and 100mm diameter lens.
- Safe for use at high vibration environment with robust 2G vibration resistant design.
- Easy to control with only one common wire for both LEDs and audible signals.
- CE, RoHS, IP53, (UL, c-UL pending).
- Field programmable with SD card. (Sold separately) (LKEH-FV)
Message capacity is up to 63 seconds (64kbit/s) with 5 channels by a bit input and 31 channels by nary input. - Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
- Smooth LED lens surface.
Specifications
| DIMENSIONS | - 100mm diameter |
| RATED VOLTAGE | - 24V DC - 100V AC - 220V AC |
| AUDIBLE STYLE | - LKEH-FV: 63 seconds total recording time: factory recorded with 5 channel bit input; or 31 channel binary input MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
| VOLUME | - Maximum 105dB at 1 meter with adjustable volume control |
| BODY STYLE | - Pre-assembled, pre-wired only for module colours specified, lens interchangeable after purchase |
| BODY COLOUR | - Body: Light grey |
| GLOBE COLOURS | - Red - Amber - Green - Blue - White |
| GLOBE MATERIAL | - Polycarbonate Resin |
| PROTECTION RATING | - IP53 |
| OPTIONS | - SDV-2GP |

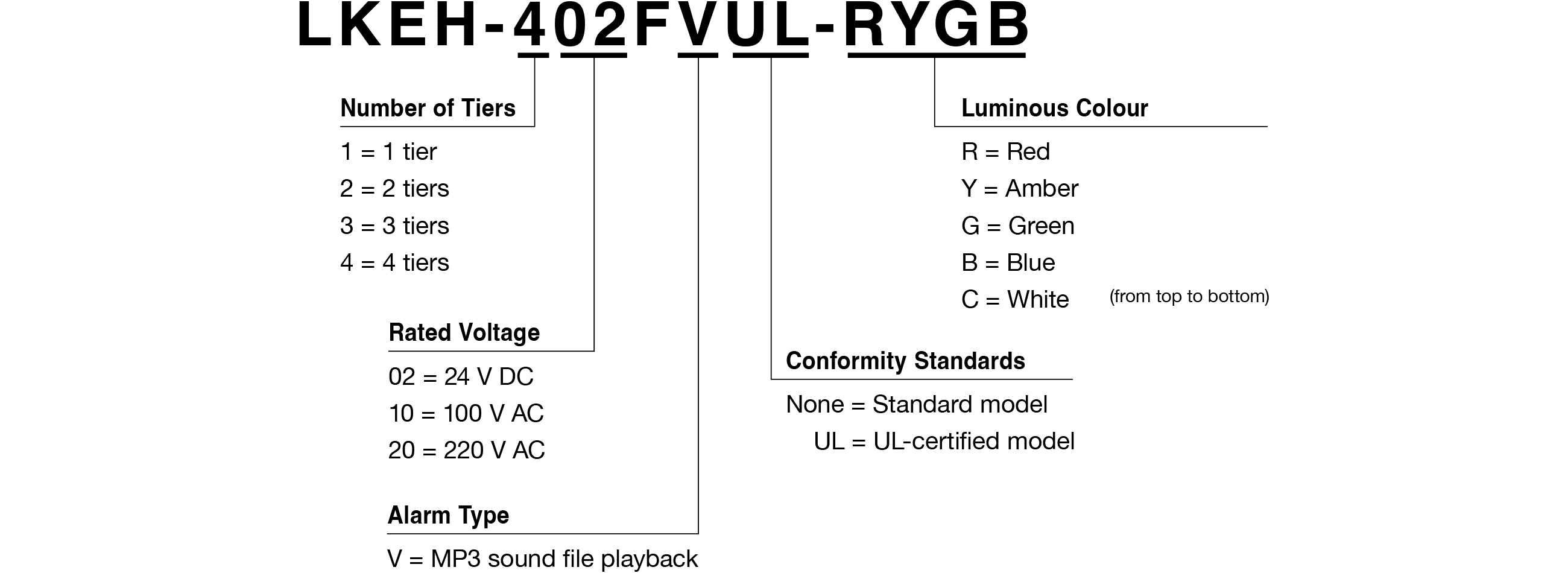

Model Number Configuration
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Installation Manual File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]
3D CAD [IGS] (zip)Product Specifications
repair parts
LKEH-FV
LKEH-FV
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
|
B32310054-F1 | 1 | ||||
|
|
B72100151-1F1 | 1-4: Depends on number of tiers. | ||||
|
|
B72100151-2F1 | 1-4: Depends on number of tiers. | ||||
|
|
B72100151-3F1 | 1-4: Depends on number of tiers. | ||||
|
|
B72100151-4F1 | 1-4: Depends on number of tiers. | ||||
|
|
B72100151-7F1 | 1-4: Depends on number of tiers. | ||||
|
|
B62910033-1F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×87mm. |
|||
|
|
B62910033-2F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×147mm. |
|||
|
|
B62910033-3F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×207mm. |
|||
|
|
B62910033-4F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×267mm. |
|||
|
|
C21100087-F1 | 1 |
