Signal Tower with Horn
LKEH-FA/C/D/E
This Signal Tower with integrated horn offers up to 105dB of sound output and high-visibility LED indication. Engineered with a durable polycarbonate globe and IP53 protection, it is ideal for use in demanding industrial environments. Features include five LED colour options, CE compliance (24V), adjustable volume, and SD card-based tone group configuration.
- I/O Control
- Signal Tower
- Φ100
- Continuous on
- Flashing (Strobe)
- Hybrid Products
- Tones
- Melody
- 105dB
- Indoor and upright only
- IP53
- Red
- Amber
- Green
- Blue
- White
Product Features
Key Features
- Available Colours: Red, Amber, Green, Blue, White
- Lens manufactured from high-impact, heat-resistant polycarbonate
- High-luminance design ideal for installation at elevated positions on large-scale equipment
- Smooth lens surface reduces accumulation of dust and particulates
- Ingress Protection: IP53, suitable for environments exposed to moisture and dust
- Compatible with NPN open-collector outputs, allowing direct PLC control
- Meets EU RoHS Directive requirements; 24 V models are CE-marked
- Includes features such as volume reduction mode and tone group selection via SD card
Specifications
| Dimensions | Ø100 mm |
|---|---|
| Rated Voltage | 24 V DC 100 V AC 220 V AC |
| Tone Types | Selectable Tone Patterns: A / C / D / E (Only Type E samples are available via the "Sample tab") |
| Sound Pressure Level | Up to 105 dB (at 1 m); adjustable volume |
| Body Colour | Light Grey |
| LED Unit Colour | Red / Amber / Green / Blue / White |
| Lens Material | Polycarbonate |
| Ingress Protection | IP53 |
Sample (Sound / Audio)
Reference Configuration

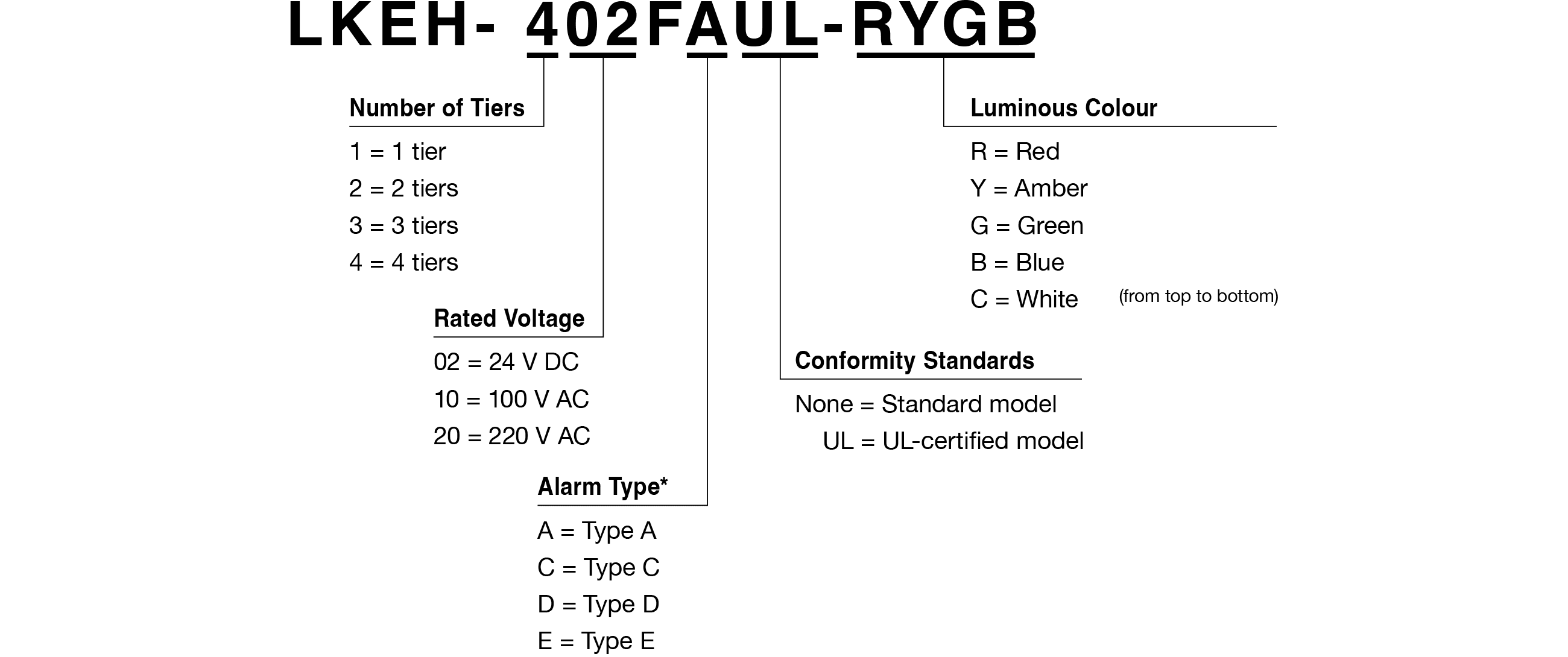

Model Code
For detailed information, please refer to the Alarm Sound Selection Chart in the General Catalogue.
Product List
| Model Number | Number of Tiers | Rated Voltage | Alarm Type | UL Certified | Luminous Colour |
|---|---|---|---|---|---|
| LKEH-102F □ -R/Y/G/B/C | 1 | 24 V DC | A / C / D / E | - | Red / Amber / Green / Blue / White |
| LKEH-110F □ -R/Y/G/B/C | 1 | 100 V AC | - | Red / Amber / Green / Blue / White | |
| LKEH-120F □ -R/Y/G/B/C | 1 | 220 V AC | - | Red / Amber / Green / Blue / White | |
| LKEH-202F □ -RY/RG | 2 | 24 V DC | - | Red, Amber / Red, Green | |
| LKEH-210F □ -RY/RG | 2 | 100 V AC | - | Red, Amber / Red, Green | |
| LKEH-220F □ -RY/RG | 2 | 220 V AC | - | Red, Amber / Red, Green | |
| LKEH-302F □ -RYG | 3 | 24 V DC | - | Red, Amber, Green | |
| LKEH-310F □ -RYG | 3 | 100 V AC | - | Red, Amber, Green | |
| LKEH-320F □ -RYG | 3 | 220 V AC | - | Red, Amber, Green | |
| LKEH-402F □ -RYGB | 4 | 24 V DC | - | Red, Amber, Green, Blue | |
| LKEH-410F □ -RYGB | 4 | 100 V AC | - | Red, Amber, Green, Blue | |
| LKEH-420F □ -RYGB | 4 | 220 V AC | - | Red, Amber, Green, Blue | |
| LKEH-102F □ UL-R/Y/G/B/C | 1 | 24 V DC | ✔ | Red / Amber / Green / Blue / White | |
| LKEH-202F □ UL-RY/RG | 2 | 24 V DC | ✔ | Red, Amber / Red, Green | |
| LKEH-302F □ UL-RYG | 3 | 24 V DC | ✔ | Red, Amber, Green | |
| LKEH-402F □ UL-RYGB | 4 | 24 V DC | ✔ | Red, Amber, Green, Blue |
When operating multiple units, sound output may not commence simultaneously.
This product is not intended for use in vehicle-mounted applications.
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Manual File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D CAD [dxf]
3D CAD [IGS] (zip)Product Specifications
repair parts
LKEH-FA/C/D/E
LKEH-FA/C/D/E
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
B32310054-F1 | 1 | ||||
|
B72100151-1F1 | 1-4: Depends on number of tiers. | ||||
|
B72100151-2F1 | 1-4: Depends on number of tiers. | ||||
|
B72100151-3F1 | 1-4: Depends on number of tiers. | ||||
|
B72100151-4F1 | 1-4: Depends on number of tiers. | ||||
|
B72100151-7F1 | 1-4: Depends on number of tiers. | ||||
|
B62910033-1F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×87mm. |
|||
|
B62910033-2F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×147mm. |
|||
|
B62910033-3F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×207mm. |
|||
|
B62910033-4F2 | 2 |
Includes flat washers and O-rings [2 pcs each]. M4×267mm. |
|||
.jpg)
|
C21100087-F1 | 1 |
