Flashing Beacon
GL7
The GL7 Flashing Beacon is built with a rugged, IP69K-rated housing designed to withstand vibration and impact. Its slim form allows installation in tight spaces, while a range of flash patterns and selectable control modes (CAN or voltage) make it ideal for status indication on outdoor equipment and compact machinery.
- I/O Control
- CAN communication control
- Φ68
- Signal Light
- Flashing (Strobe)
- Outdoor
- Indoor
- IP69K
- Red
- Amber
- Green
Product Features
Durable Compact Signal Light for Demanding Industrial Environments
Engineered for Extreme Conditions
- High Vibration Resistance
![[Vibration res.] 110 m/s², [Shock res.] 1,000 m/s²](/data/product_img/uk/gl7_product_1.png)
- Ingress Protection
Conforms to international standards, including EMC (ISO 13766-1) and environmental testing (ISO 16750).

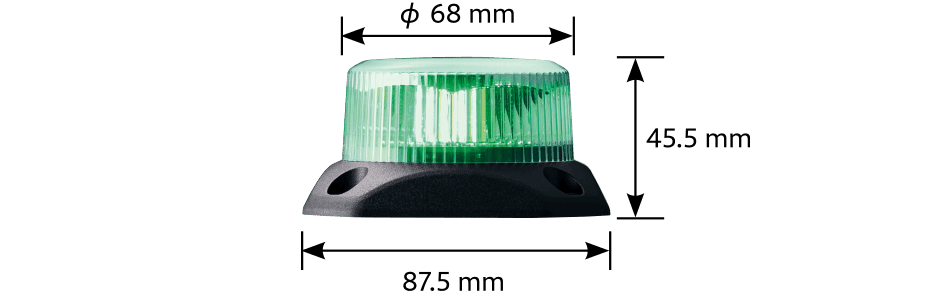

Compact, Space-Efficient Design
Streamlined housing requiring minimal installation space – ideal for compact machinery and materials handling equipment.
Wide Range of Flash Patterns to Match Application Needs
- Three-colour LED with distinctive flash patterns for intuitive status recognition.
- Clearly differentiated light patterns enhance visibility and aid colour-impaired users.
>> View all available flash patterns
Two Control Options
CAN Bus Control
- Supports SAE J1939 protocol, widely adopted in construction and agricultural machinery.
- Command-based control of 13 flash modes and 4 brightness levels.
- Real-time status monitoring contributes to enhanced system safety and diagnostics.
- Auto-recognition of 250 kbps or 500 kbps communication speed – no manual configuration required.
Wired Signal Control
- Controlled via dedicated signal wires; no communication protocol required.
- Fixed flash pattern per LED colour ensures clear status indication, including for colour-impaired users.
Note: Flash patterns are pre-configured; system feedback is not supported on this model.
Application Examples

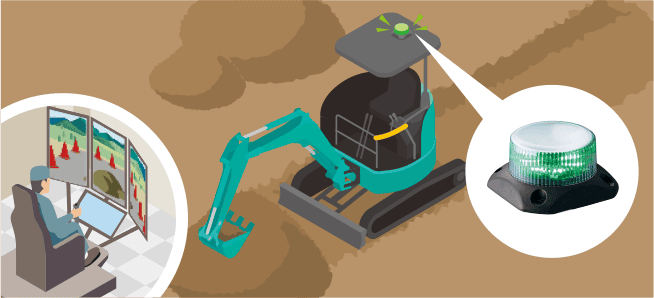

Status Indication for Remote-Controlled Equipment

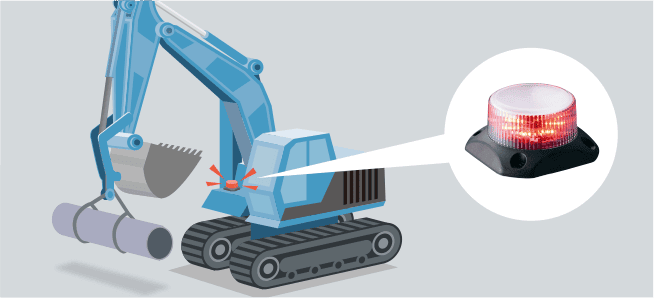

Overload Prevention Alerts

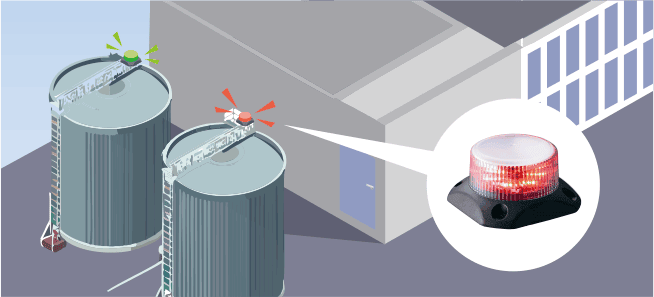

Outdoor Equipment Status and Fault Indication

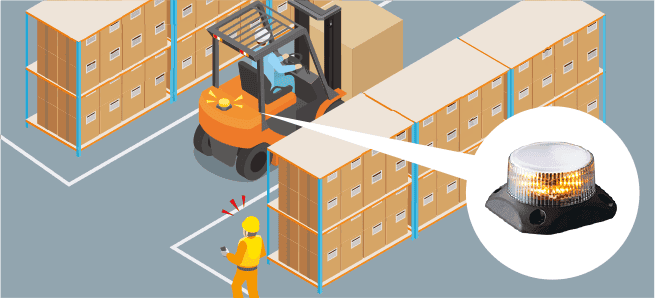

Warehouse and Logistics Safety Signalling
Optional Accessory
Magnetic Mounting Bracket
Tool-Free Installation
The optional magnetic bracket enables secure attachment without drilling or permanent modifications*—ideal for rental or temporary installations.
Applicable Models: GL7-M1N-T, GL7T-M1N-T, GL7-M1N-Y, GF7-48N-Y
Note: When mounted using GL-001, vibration resistance is 45 m/s².

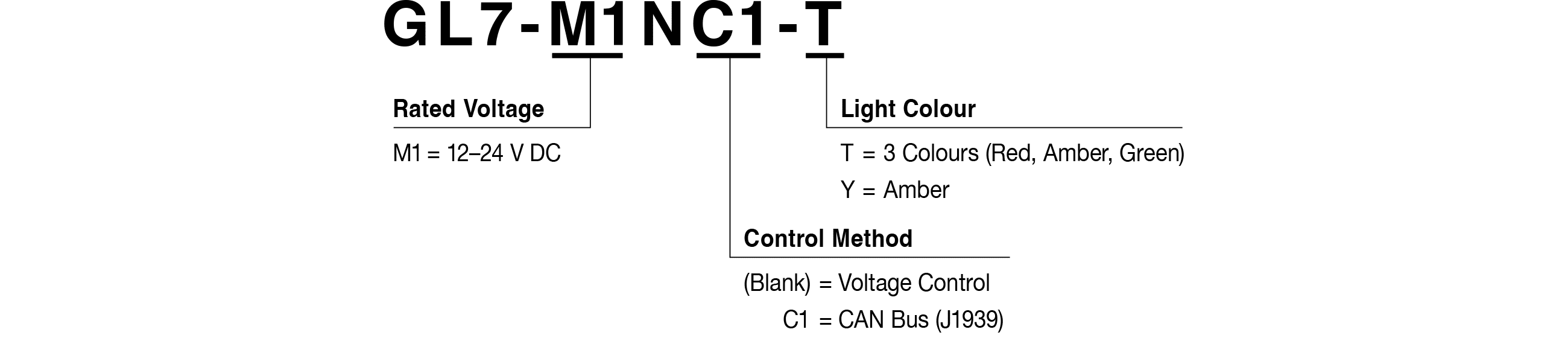

Model Number Configuration
Model Code
Product Lineup
3-Colour Multi-Colour Models
| Model | Rated Voltage | Control Specification | Light Colour | Flash Pattern |
|---|---|---|---|---|

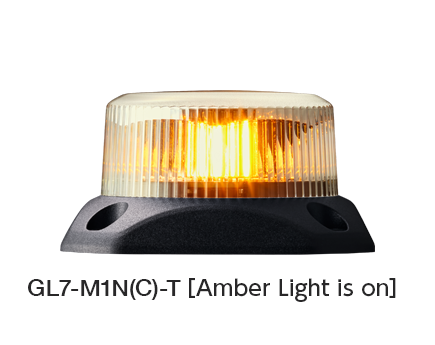

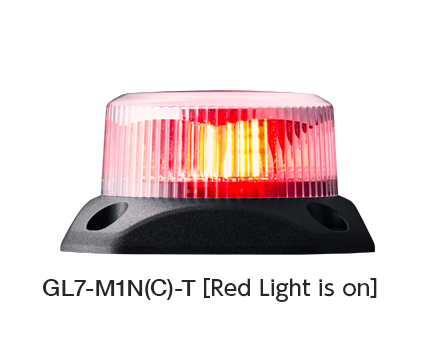

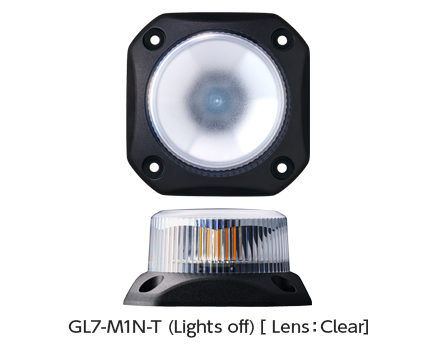

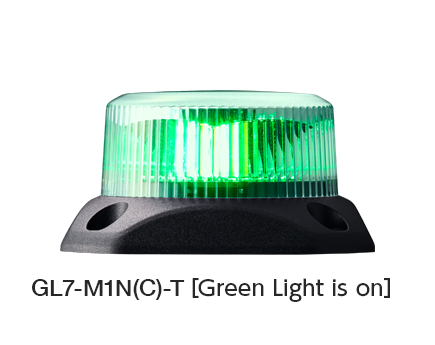

| GL7-M1N-T | 12–24 V DC | Voltage Input | 3 Colours (Red, Amber, Green) | Fixed Pattern (per colour) |
| GL7-M1NC1-T | CAN (J1939) Protocol | Selectable: Flashing / Steady / Soft-Blink, etc. |
Single-Colour Models
| Model | Rated Voltage | Control Specification | Light Colour | Flash Pattern |
|---|---|---|---|---|

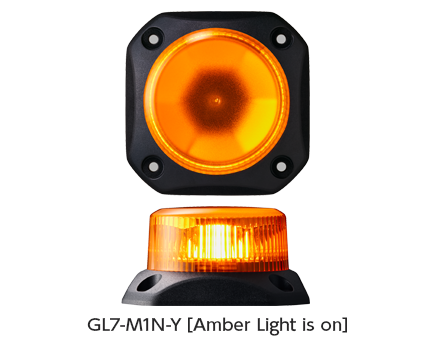

| GL7-M1N-Y | 12–24 V DC | Voltage Input | Amber | Flashing |
