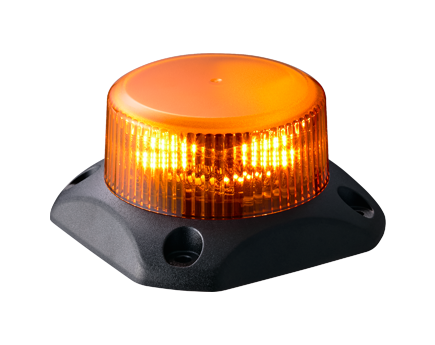

Rotating Beacon
GF7
The GF7 Rotating Beacon inherits the rugged, IP69K-rated durability of the GL7, while using LED control to simulate 360° rotation around the unit. It operates on a simple voltage-input system with a 48V rating for construction equipment. Available in amber only, it provides simple and reliable visual signalling.
- I/O Control
- Φ68
- Revolving Warning Light
- Rotating
- Indoor
- Outdoor
- IP69K
- Amber
Product Features
Compact Rotating Beacon for Demanding Industrial Applications
Built for Extreme Conditions
- Resistance to Vibration and Shock
![[Vibration res.] 110 m/s², [Shock res.] 1,000 m/s²](/data/product_img/uk/gl7_product_1.png)
- Ingress Protection Against Dust and Water
Compliant with global standards such as EMC (ISO 13766-1) and environmental resistance (ISO 16750).

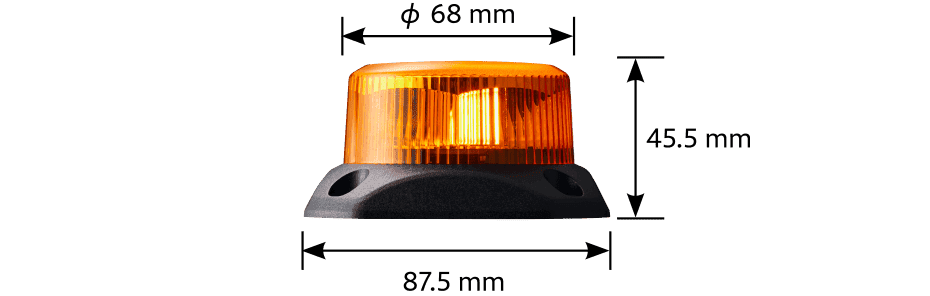

Compact Design for Tight Spaces
Low-profile form factor ideal for forklifts and compact construction machinery where mounting space is limited.
Flowing Amber Light for 360° Visibility
- Amber rotating effect ensures high visibility from all directions, enhancing site safety and operational awareness.
Control Method
Wired Input Control
- Non-communicating model compatible with standard voltage input control systems.

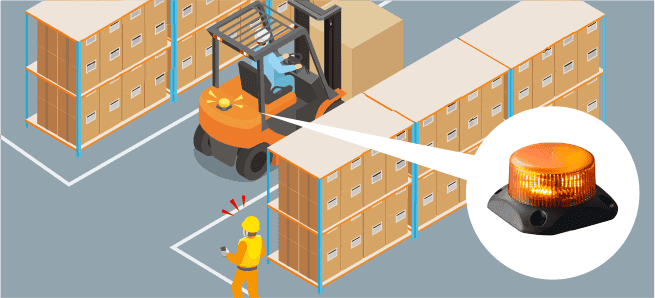

Application Example
Safety Signalling in Logistics Facilities
Optional Accessory

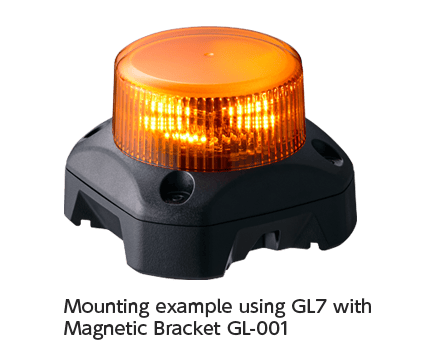

Magnetic Mounting Bracket
Tool-Free Magnetic Installation
Ideal for temporary or rental applications, the optional magnetic bracket allows installation without drilling or equipment modification*.
Applicable Models: GL7-M1N-T, GL7T-M1N-T, GL7-M1N-Y, GF7-48N-Y
Note: When used with GL-001, vibration resistance is limited to 45 m/s².

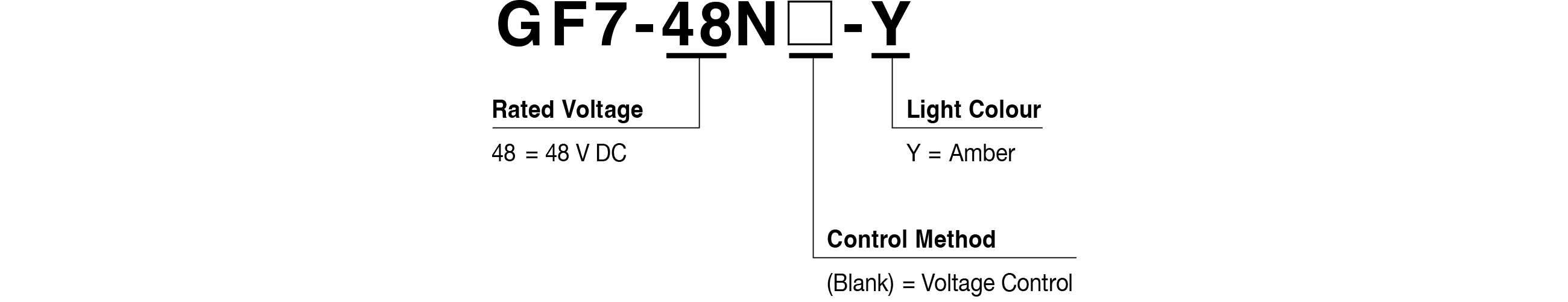

Model Number Configuration
Model Code
Product Line-up

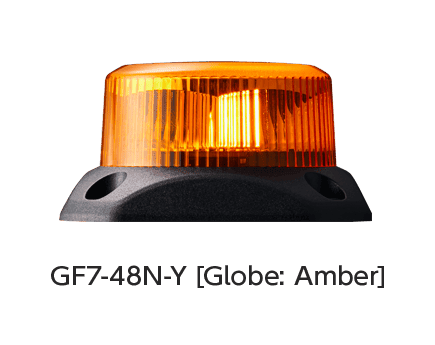

Single-Colour Amber Variant
| Model | Rated Voltage | Control Method | Light Colour | Flash Pattern |
|---|---|---|---|---|
| GF7-48N-Y | 48 V DC | Voltage Input | Amber | Flowing Illumination |
WEB Catalog
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual [Digest version] File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
2D_CAD［dxf］Product Specifications
